ISC15ANP4 - NKK Switches

Description: Display Switches OLED SmartDisplay 64 X 48 full color

Download ISC15ANP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

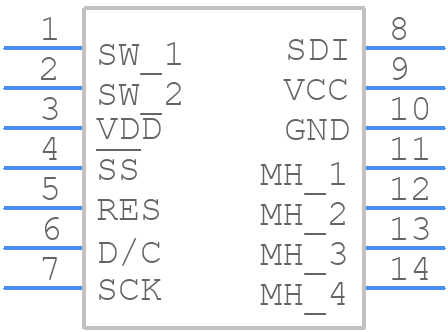

ISC15ANP4 - NKK Switches - PCB symbol
click to zoom
PCB Footprints

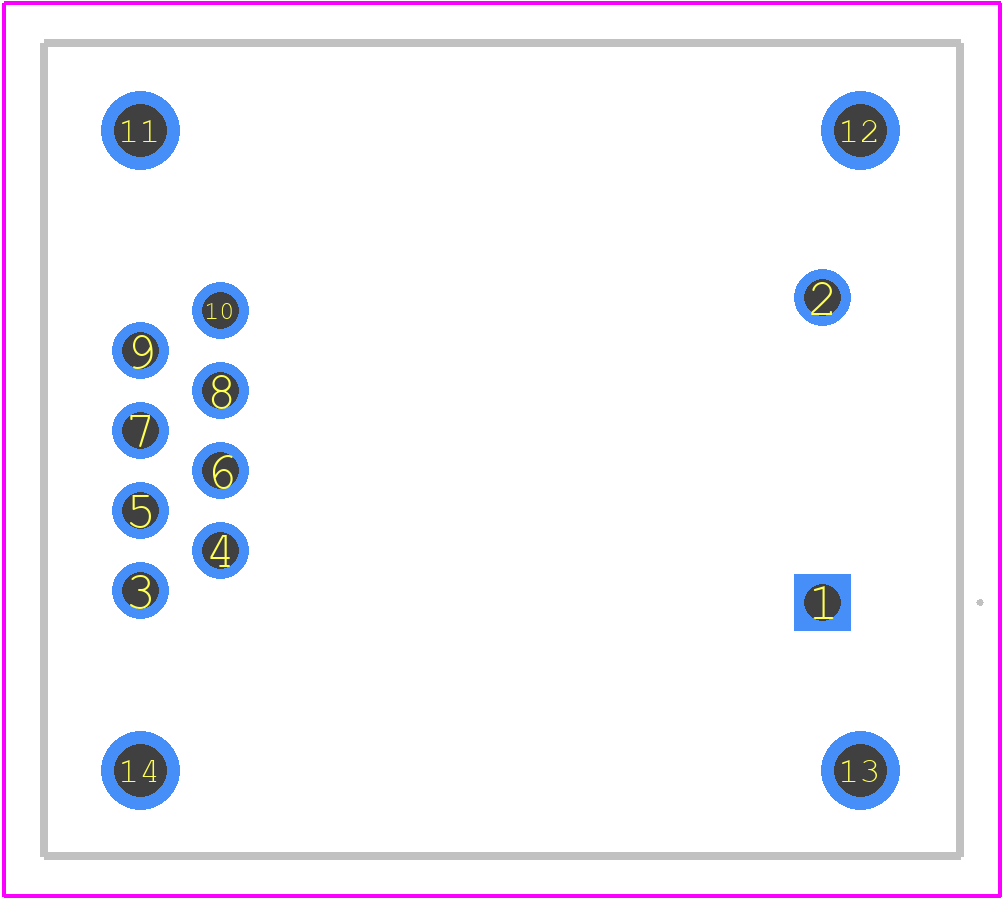

ISC15ANP4 - NKK Switches PCB footprint - Other - Other - ISC15ANP4
click to zoom
3D Models
ISC15ANP4 - NKK Switches - 3D model - Other - ISC15ANP4
click to zoom

ISC15ANP4 Details

  • Manufacturer Part Number:

    ISC15ANP4

  • Brand Name:

    NKK Switches

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    NKK Switches

  • YTEOL:

    0

  • Switch Type:

    PUSHBUTTON SWITCH

ISC15ANP4 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ISC15ANP4 is -20°C to 85°C.
  • Yes, the ISC15ANP4 is designed for high-reliability applications and has undergone rigorous testing to ensure its performance and durability.
  • Yes, the ISC15ANP4 is designed to operate in harsh environments and can withstand exposure to dust, moisture, and vibration.
  • The expected lifespan of the ISC15ANP4 switch is 100,000 to 500,000 cycles, depending on the operating conditions and usage.
  • Yes, the ISC15ANP4 is designed for PCB mounting and can be easily integrated into a printed circuit board.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISC15ANP4 Overview

Use the download button to access the ISC15ANP4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISC15, or try a keyword search, such as Pushbutton Switches
