ISD1016AP - Nuvoton

Description: IC VOICE RECORD/PLAYBACK 16SEC

Download ISD1016AP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

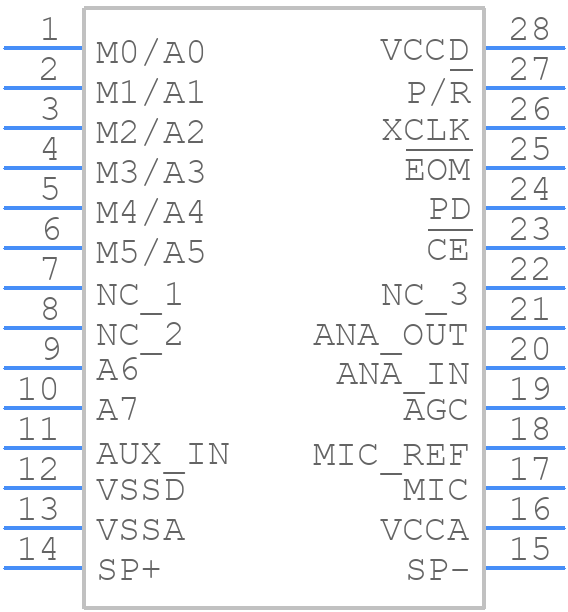

ISD1016AP - Nuvoton - PCB symbol
click to zoom
PCB Footprints

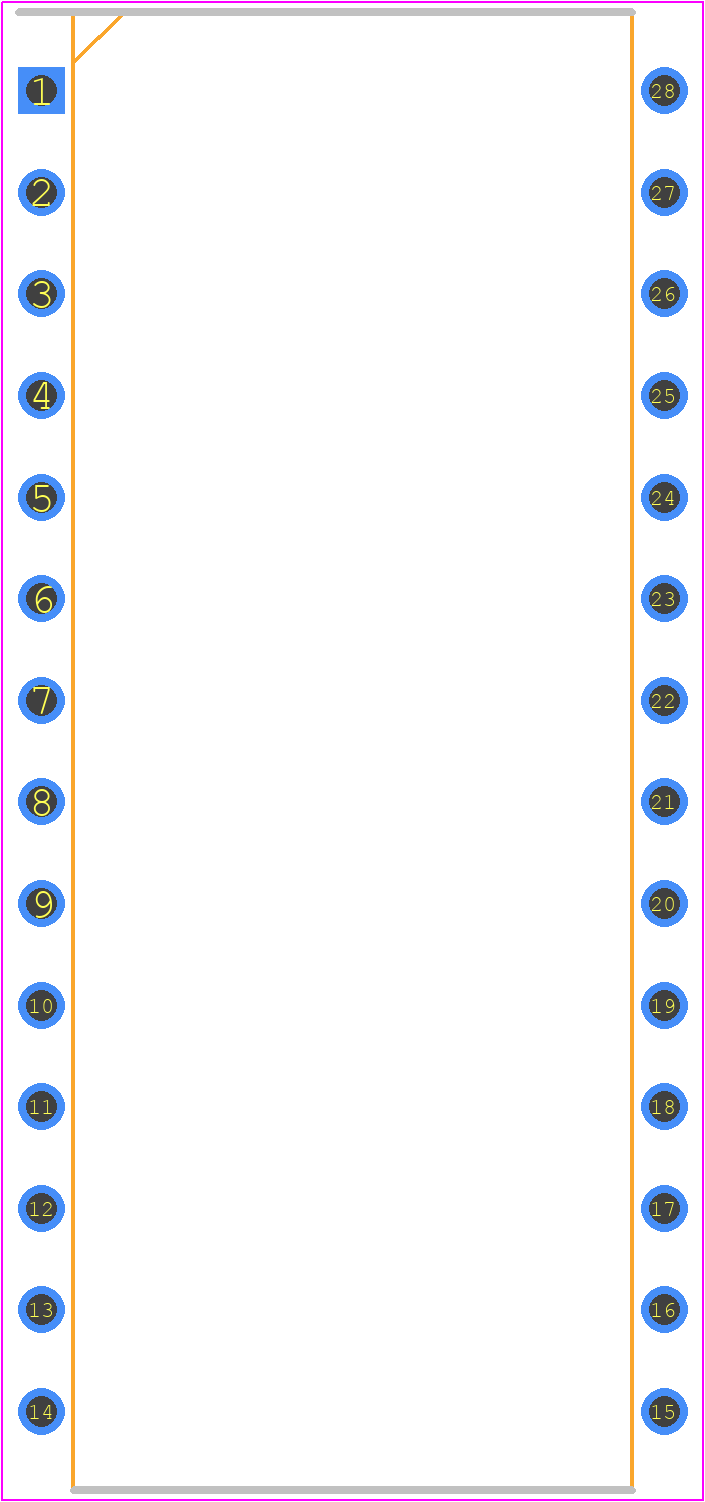

ISD1016AP - Nuvoton PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-LEAD 600-MIL PLASTIC DUAL INLINE PACKAGE (P)
click to zoom
3D Models
ISD1016AP - Nuvoton - 3D model - Dual-In-Line Packages - 28-LEAD 600-MIL PLASTIC DUAL INLINE PACKAGE (P)
click to zoom

ISD1016AP Details

  • Manufacturer Part Number:

    ISD1016AP

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    0

  • Consumer IC Type:

    SPEECH SYNTHESIZER WITH RCDG

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e0

  • Length:

    36.83 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • On Chip Memory Type:

    EEPROM

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Reading Time-Max:

    16 s

  • Seated Height-Max:

    4.83 mm

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ISD1016AP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for ISD1016AP is 2.7V to 3.6V, although it can operate from 2.4V to 4.5V with reduced performance.
  • The ISD1016AP has a built-in reset pin (RST) that can be connected to a pull-up resistor and a capacitor to create a power-on reset circuit. Alternatively, an external reset signal can be applied to the RST pin.
  • The ISD1016AP can operate up to 16 MHz clock frequency, but the actual frequency may vary depending on the specific application and operating conditions.
  • To configure the ISD1016AP for low power consumption, set the clock frequency to the lowest required value, disable unnecessary peripherals, and use the power-down mode (PD) or sleep mode (SLP) when the device is not in use.
  • Yes, the ISD1016AP can be used with an external crystal oscillator. The device has an internal oscillator circuit that can be connected to an external crystal or ceramic resonator to provide a stable clock signal.
