The recommended operating temperature range for the ISD1416PI is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to 125°C.
To ensure proper separation of analog and digital grounds, it's recommended to use a multi-layer PCB with separate ground planes for analog and digital circuits. Additionally, use a single-point ground connection between the two planes to minimize noise coupling.
The maximum allowed voltage on the ISD1416PI's analog input pins is VCC + 0.3V. Exceeding this voltage may cause damage to the device or affect its performance.
To optimize power consumption, ensure that the device is operated within the recommended voltage range, use a low-power oscillator, and minimize the clock frequency when possible. Additionally, consider using the device's power-down mode when not in use.
For optimal performance, it's recommended to place the crystal oscillator close to the ISD1416PI, use a symmetrical layout, and keep the traces as short as possible. Additionally, use a ground plane under the oscillator to minimize noise and ensure a stable clock signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISD1416PI Overview

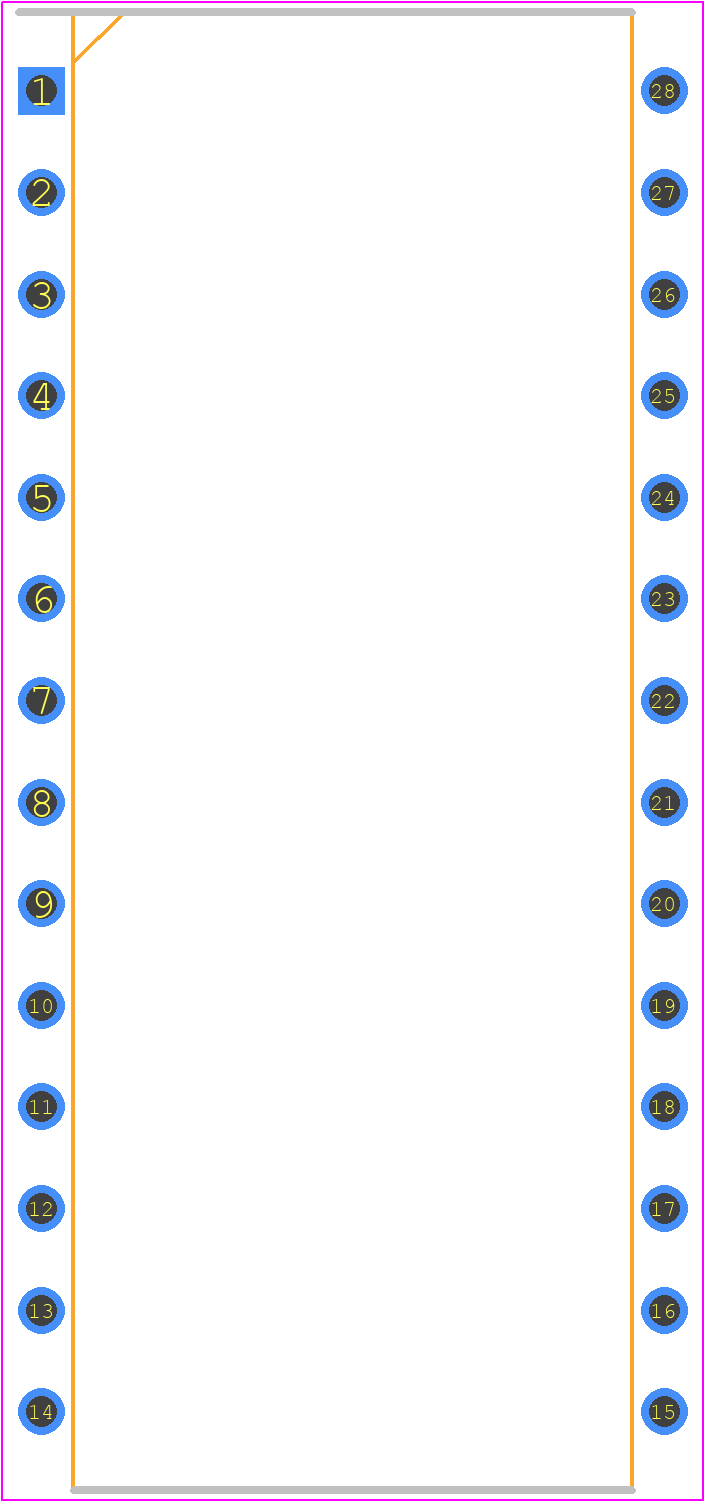

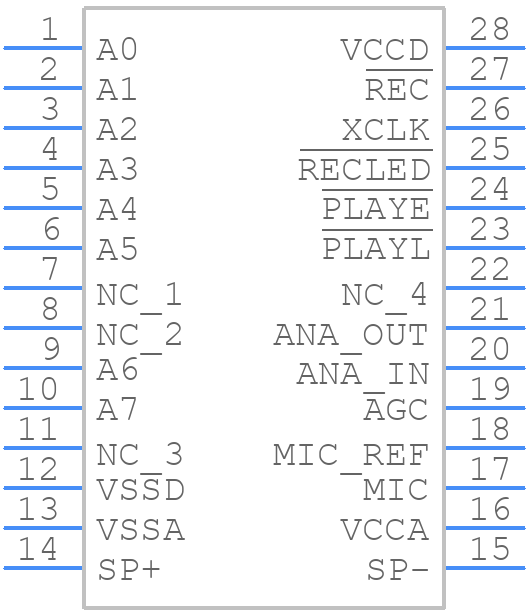

Use the download button to access the ISD1416PI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISD14,
or try a keyword search, such as Audio Synthesizer ICs
