ISD1420P - Winbond

Description: SINGLE-CHIP VOICE RECORD/PLAYBACK DEVICES

Download ISD1420P Model

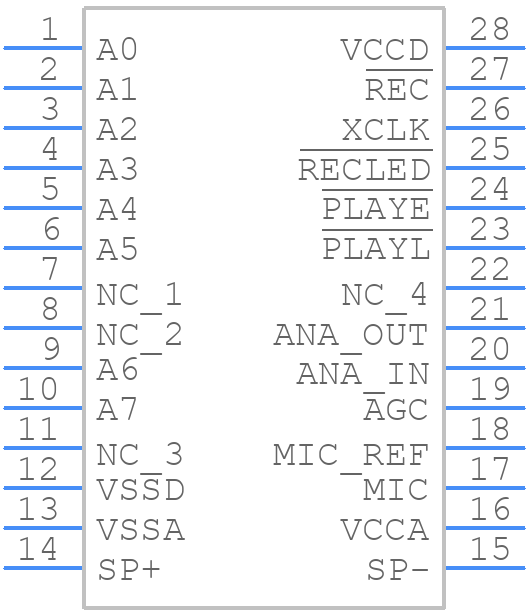

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

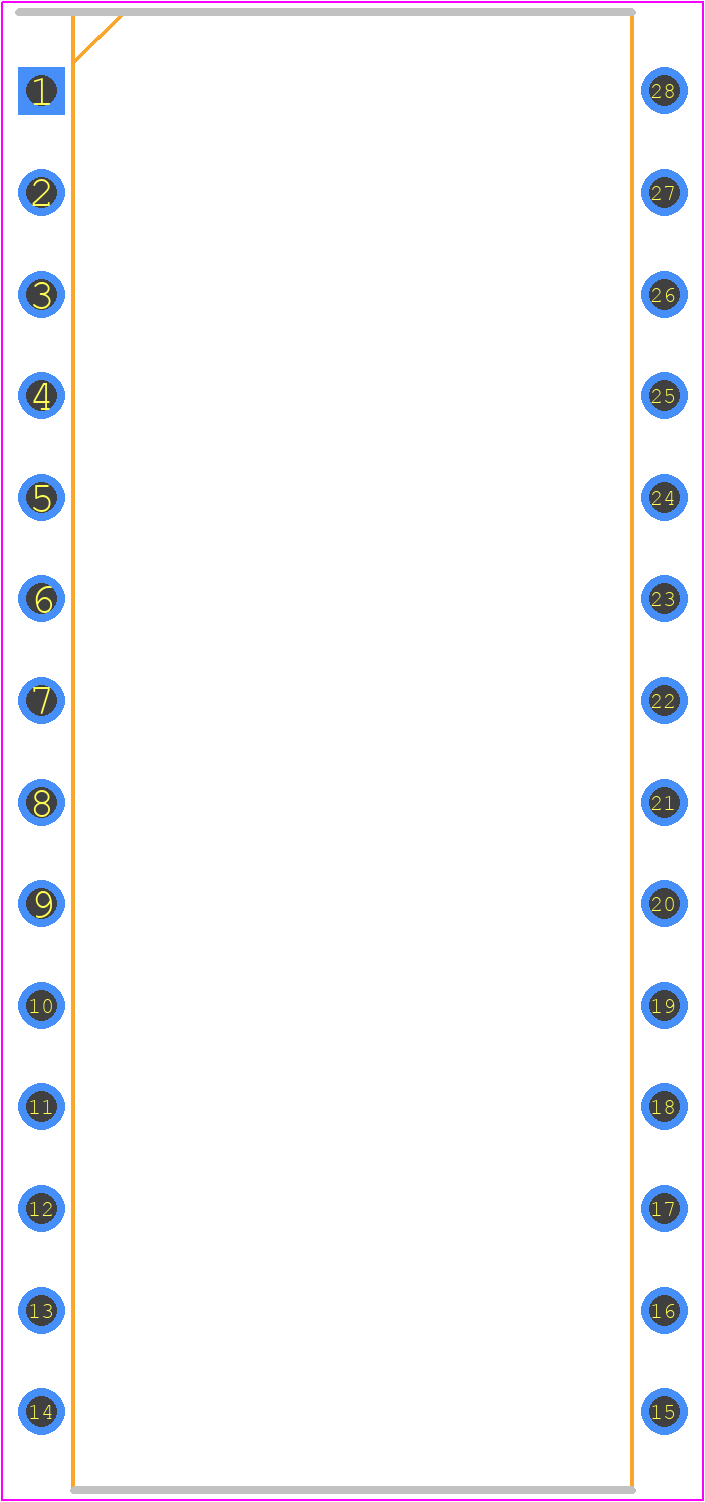

PCB Footprints
ISD1420P - Winbond PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28 LEAD 600 MIL PDIP
click to zoom
3D Models
ISD1420P - Winbond  - 3D model - Dual-In-Line Packages - 28 LEAD 600 MIL PDIP
click to zoom

ISD1420P Details

  • Manufacturer Part Number:

    ISD1420P

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.600 INCH, PLASTIC, DIP-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Consumer IC Type:

    SPEECH SYNTHESIZER WITH RCDG

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e0

  • Length:

    36.83 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • On Chip Memory Type:

    EEPROM

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Reading Time-Max:

    20 s

  • Seated Height-Max:

    4.83 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm
