ISD15102FYI - Nuvoton

Description: 120s Voice Record and Playback 80kOhm 3.3V 48-Pin LQFP

Download ISD15102FYI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

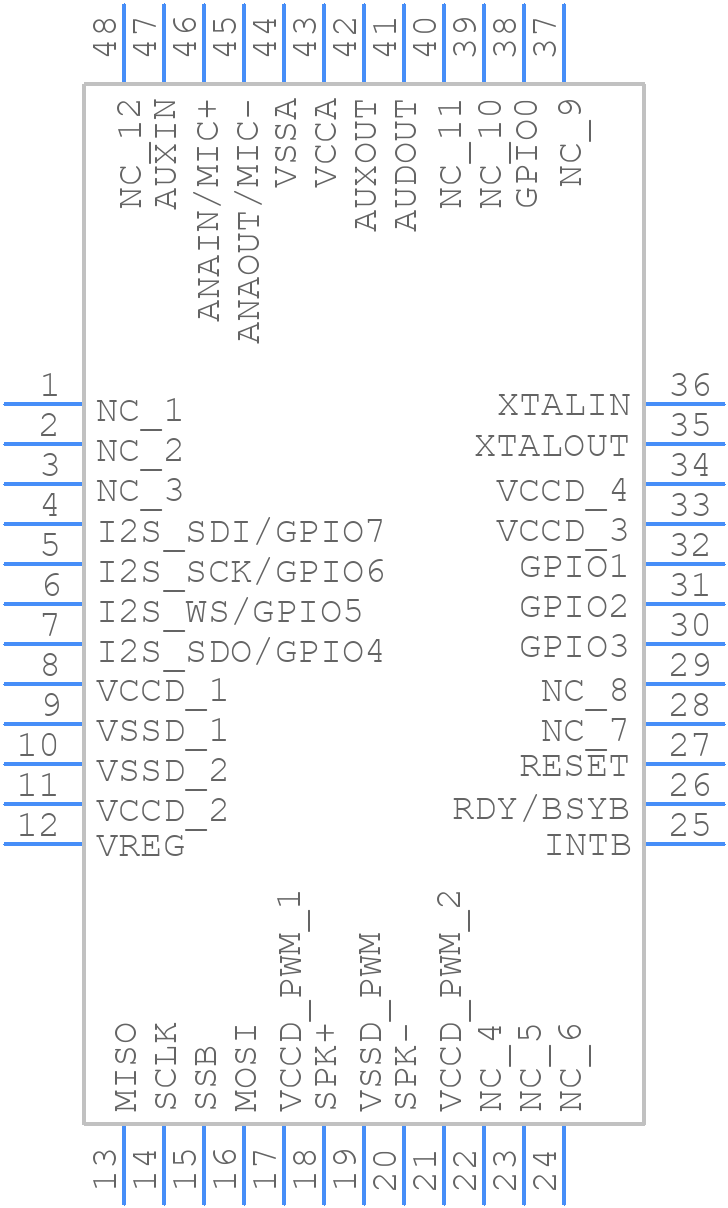

ISD15102FYI - Nuvoton - PCB symbol
click to zoom
PCB Footprints
ISD15102FYI - Nuvoton PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 LEAD LQFP(7X7X1.4MM FOOTPRINT 2.0MM)_2023
click to zoom
3D Models
ISD15102FYI - Nuvoton - 3D model - Quad Flat Packages - 48 LEAD LQFP(7X7X1.4MM FOOTPRINT 2.0MM)_2023
click to zoom

ISD15102FYI Details

  • Manufacturer Part Number:

    ISD15102FYI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nuvoton Technology Corp

  • Consumer IC Type:

    SPEECH SYNTHESIZER WITH RCDG

ISD15102FYI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the ISD15102FYI is 2.7V to 3.6V.
  • A simple reset circuit can be implemented using a 10kΩ resistor, a 10μF capacitor, and a diode. Connect the resistor and capacitor in series between VCC and RST, and the diode between RST and GND.
  • The ISD15102FYI supports a maximum clock frequency of 16 MHz.
  • To configure the ISD15102FYI for low-power operation, set the PWRDN pin high and the CLKEN pin low. Additionally, reduce the clock frequency and disable any unused peripherals.
  • The TEST pin is used for factory testing and should be connected to GND in normal operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISD15102FYI Overview

Use the download button to access the ISD15102FYI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISD15, or try a keyword search, such as Audio Synthesizer ICs
