ISD17120SY - Nuvoton

Description: Voice Record/Playback IC Multiple Message 80 ~ 240 Sec Pushbutton, SPI 28-SOIC

Download ISD17120SY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

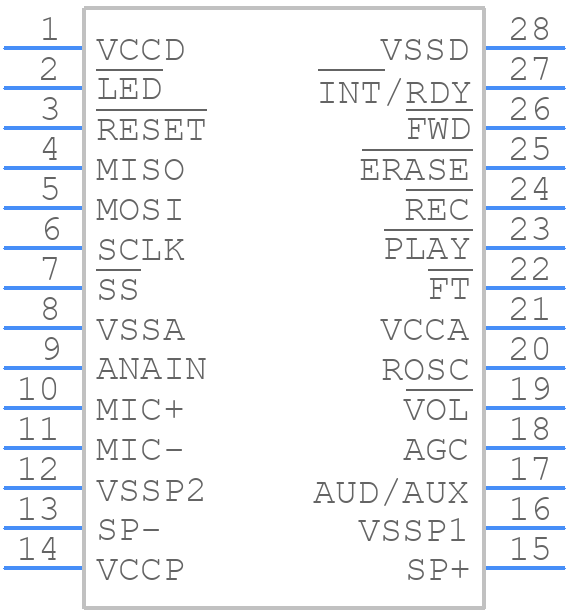

ISD17120SY - Nuvoton - PCB symbol
click to zoom
PCB Footprints

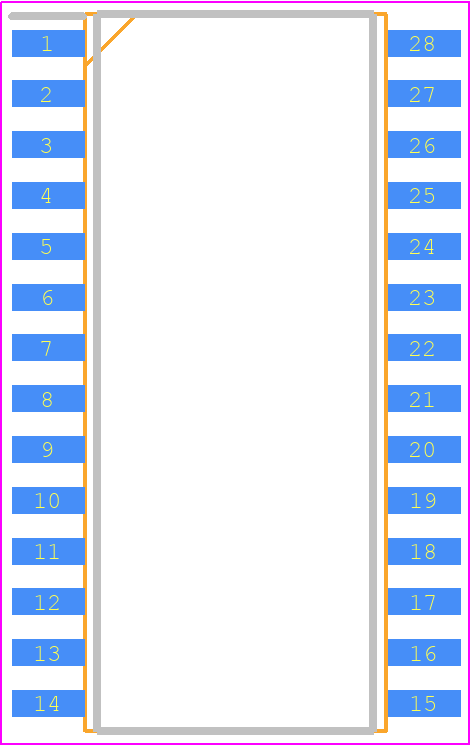

ISD17120SY - Nuvoton PCB footprint - Small Outline Packages - Small Outline Packages - 28 LEAD 300Mil SOIC
click to zoom
3D Models
ISD17120SY - Nuvoton - 3D model - Small Outline Packages - 28 LEAD 300Mil SOIC
click to zoom

ISD17120SY Details

  • Manufacturer Part Number:

    ISD17120SY

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    0

ISD17120SY Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the ISD17120SY is 2.7V to 3.6V.
  • A simple reset circuit can be implemented using a 10kΩ resistor and a 10μF capacitor connected to the RESET pin. The capacitor should be connected between the RESET pin and VCC, and the resistor should be connected between the RESET pin and GND.
  • The ISD17120SY supports a maximum clock frequency of 20MHz.
  • To configure the ISD17120SY for low power consumption, set the Power Down Mode (PDM) bit in the Power Management Register (PMR). This will reduce the power consumption of the device.
  • The XIN and XOUT pins are used to connect an external crystal oscillator or ceramic resonator to the device. The XIN pin is the input pin for the oscillator, and the XOUT pin is the output pin.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISD17120SY Overview

Use the download button to access the ISD17120SY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISD17, or try a keyword search, such as Audio Synthesizer ICs
