The recommended power-on sequence is to power up VDD first, followed by VDDA and VDDIO. This ensures that the internal voltage regulators are properly initialized.
To optimize power consumption, use the power-down mode, reduce the clock frequency, and disable unused peripherals. Additionally, use the ISD17240SY's built-in power management features, such as the voltage regulator and power gating.
The maximum clock frequency for the ISD17240SY is 40 MHz. However, the actual clock frequency may vary depending on the specific application and operating conditions.
A reliable reset circuit can be implemented using a voltage supervisor IC, such as the Nuvoton NCV8117, which provides a reset signal to the ISD17240SY during power-up and power-down sequences.
When designing a PCB with the ISD17240SY, consider using a 4-layer board with a solid ground plane, decoupling capacitors, and a clock signal trace that is short and shielded to minimize noise and electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISD17240SY Overview

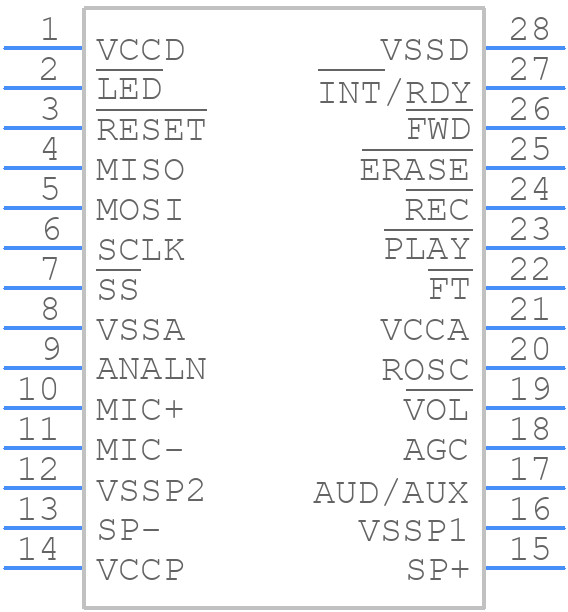

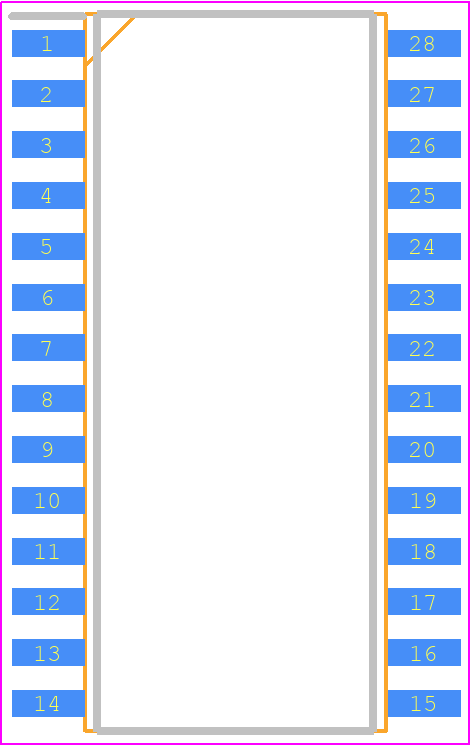

Use the download button to access the ISD17240SY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISD17,
or try a keyword search, such as Audio Synthesizer ICs
