ISD1730PY - Nuvoton

Description: Multi-Message Single-Chip Voice Record & Playback Devices

Download ISD1730PY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

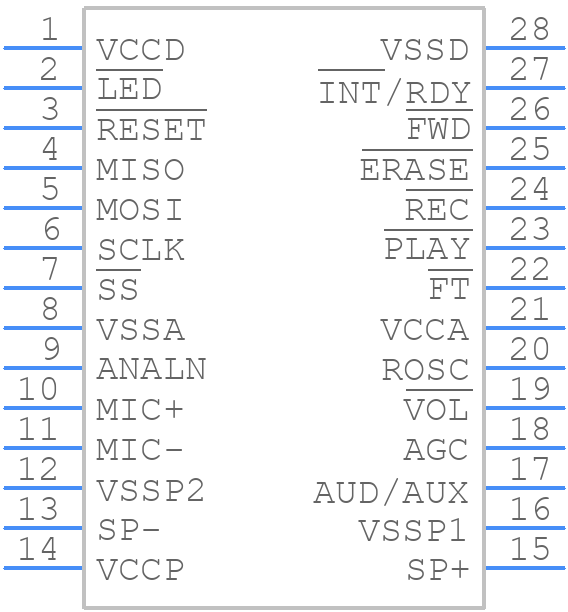

ISD1730PY - Nuvoton - PCB symbol
click to zoom
PCB Footprints

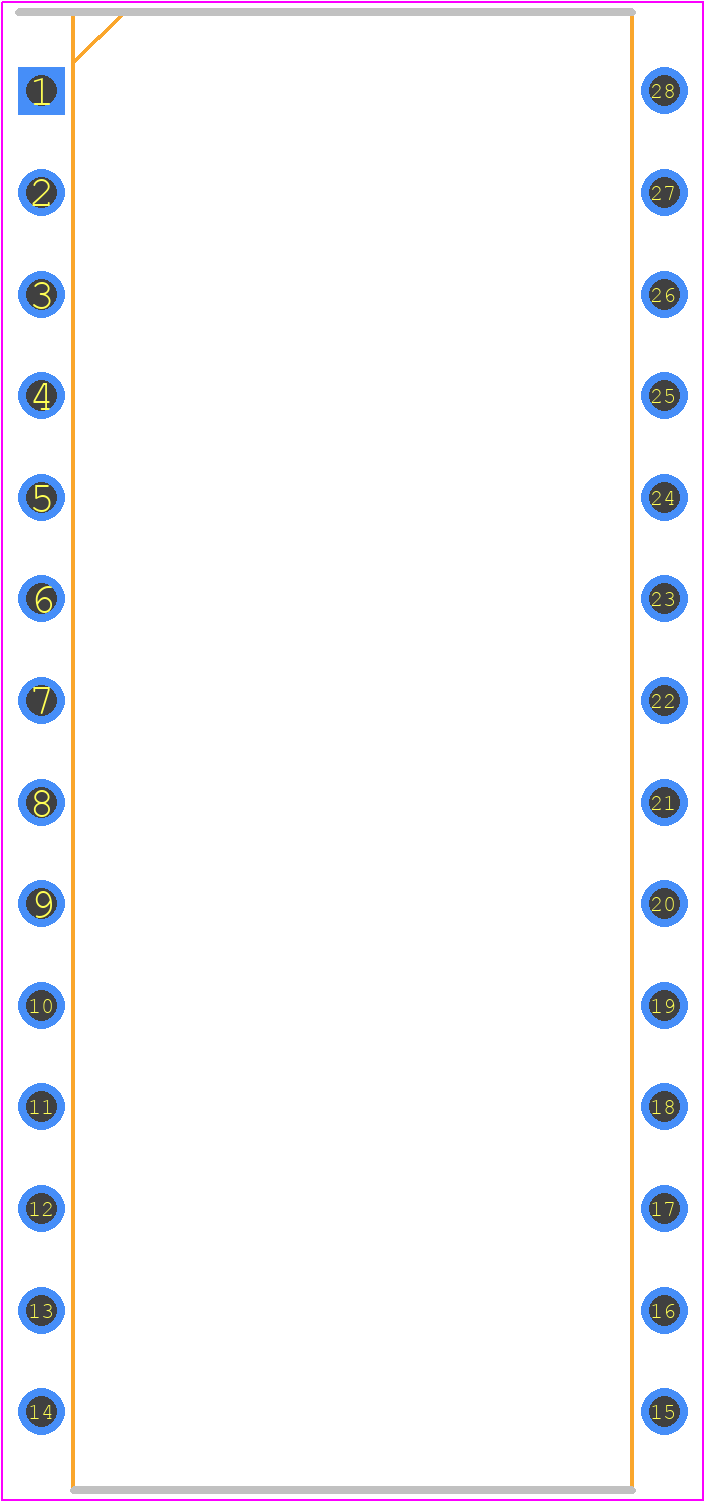

ISD1730PY - Nuvoton PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-LEAD 600-MIL PLASTIC DUAL INLINE PACKAGE (PDIP)
click to zoom
3D Models
ISD1730PY - Nuvoton - 3D model - Dual-In-Line Packages - 28-LEAD 600-MIL PLASTIC DUAL INLINE PACKAGE (PDIP)
click to zoom

ISD1730PY Details

  • Manufacturer Part Number:

    ISD1730PY

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    0

ISD1730PY Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the ISD1730PY is 2.7V to 3.6V.
  • A simple reset circuit can be implemented using a 10kΩ resistor, a 10μF capacitor, and a diode. Connect the resistor and capacitor in series between VCC and RST, and the diode between RST and GND.
  • The ISD1730PY supports a maximum clock frequency of 16 MHz.
  • To configure the ISD1730PY for low-power operation, set the PWRDN pin high, and ensure that the clock frequency is reduced or stopped. Additionally, disable any unused peripherals and reduce the voltage supply to the minimum recommended value.
  • The TEST pin is used for factory testing and should be connected to GND or left unconnected during normal operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISD1730PY Overview

Use the download button to access the ISD1730PY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISD17, or try a keyword search, such as Audio Synthesizer ICs
