ISD1730SY footprint, schematic symbol and 3D model by Nuvoton

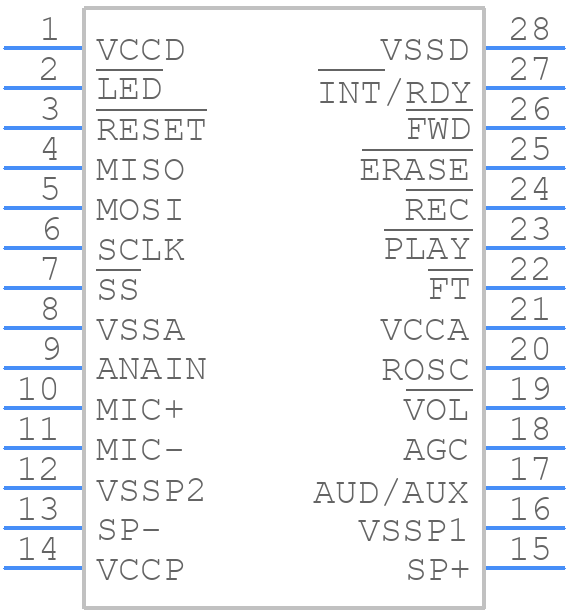

Symbol

click to zoom

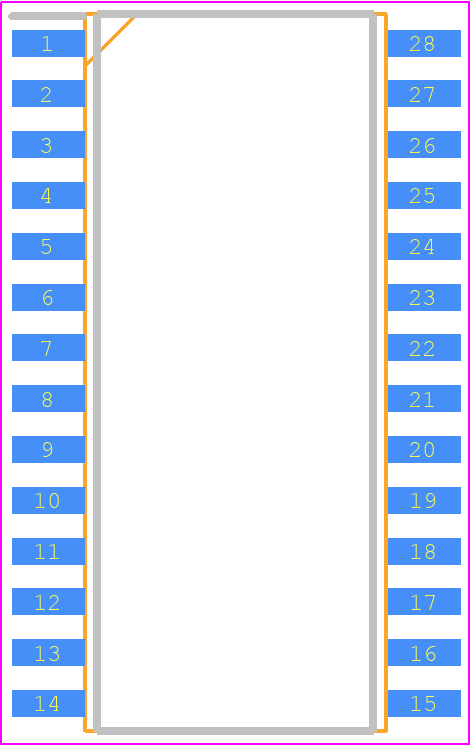

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISD1730SY
Part Number ISD1730SY
Manufacturer Nuvoton
Pin Count 28
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC_300_28
Released Date Jul 15, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ISD1730SY Details

Manufacturer Part Number:
ISD1730SY
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
HTS Code:
8542.39.00.60
Manufacturer:
Nuvoton Technology Corp
YTEOL:
0
Consumer IC Type:
TONE/MUSIC SYNTHESIZER

ISD1730SY Frequently Asked Questions (FAQs)

The recommended operating voltage range for the ISD1730SY is 2.7V to 3.6V.
A simple reset circuit can be implemented using a 10kΩ resistor and a 10μF capacitor connected to the RESET pin. This ensures that the device is properly reset during power-up.
The ISD1730SY supports a maximum clock frequency of 16 MHz.
To configure the ISD1730SY for low-power operation, set the PWRDN pin high and the device will enter a low-power standby mode. Additionally, the clock frequency can be reduced to minimize power consumption.
The TEST pin is used for factory testing purposes only and should be left unconnected during normal operation.

Trust Checks

System Verified

ISD1730SY Overview

Use the download button to access the ISD1730SY schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ISD17, or try a keyword search, such as Audio Synthesizer ICs
