- Part Number ISD1760PY
- Manufacturer Nuvoton
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

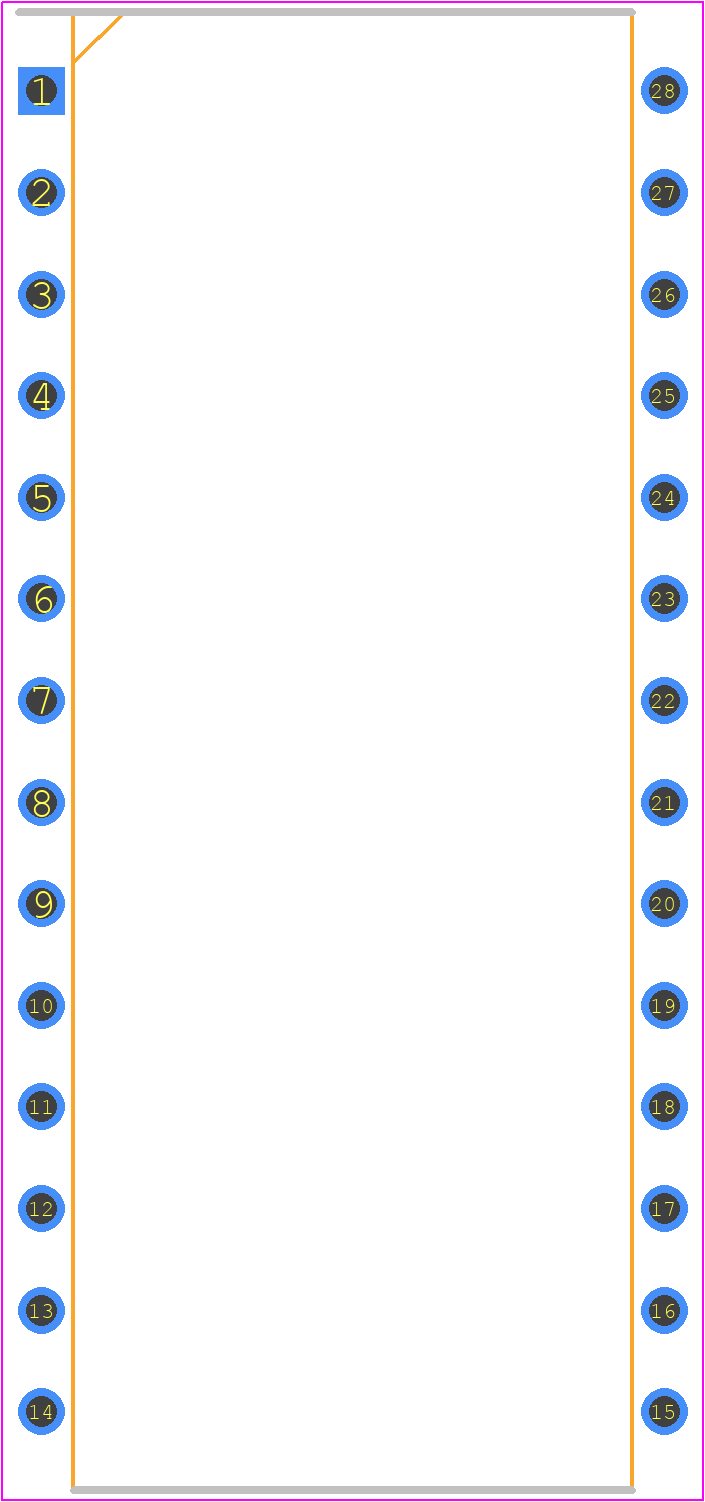

- Footprint Name Dual-In-Line Packages - 28-LEAD 600-MIL PLASTIC DUAL INLINE PACKAGE (PDIP)
- Released Date Apr 12, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ISD1760PY Details
-
Manufacturer Part Number:
ISD1760PY
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
0
ISD1760PY Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
-
To optimize power consumption, use the power-down mode (PDN) when the device is not in use, and adjust the clock frequency to the lowest required for the application. Additionally, use the built-in brown-out detector (BOD) to detect and respond to power failures.
-
The maximum clock frequency supported by the ISD1760PY is 20 MHz. However, the actual clock frequency may be limited by the specific application and system requirements.
-
The ISD1760PY has a built-in watchdog timer (WDT) that can be enabled and configured using the WDT control register. The WDT can be used to reset the device in case of a software or hardware fault.
-
The ADC is used to convert analog signals from external sensors or devices into digital signals that can be processed by the ISD1760PY. The ADC can be used to measure analog signals such as temperature, voltage, or current.
Trust Checks
Community Provided
System Verified
Community Approved
ISD1760PY Overview

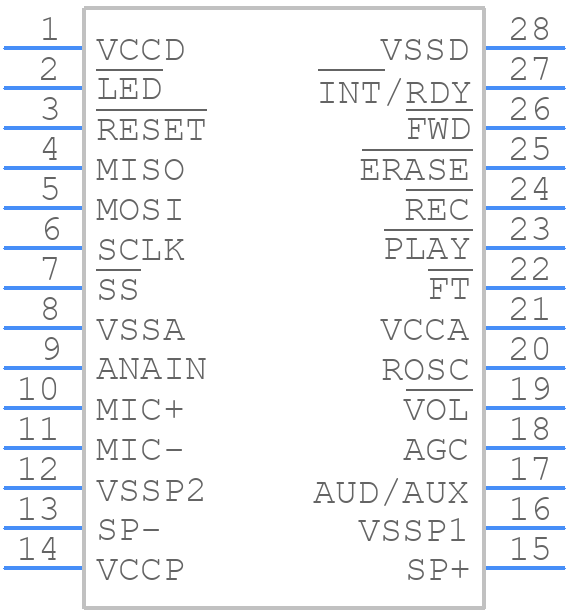

Use the download button to access the ISD1760PY schematic symbol, PCB footprint, and 3D model.
