ISD3800FYI - Nuvoton

Description: Audio DSPs 2.7-5.5V Digital voice playback, 1W, 3V Regulator

Download ISD3800FYI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

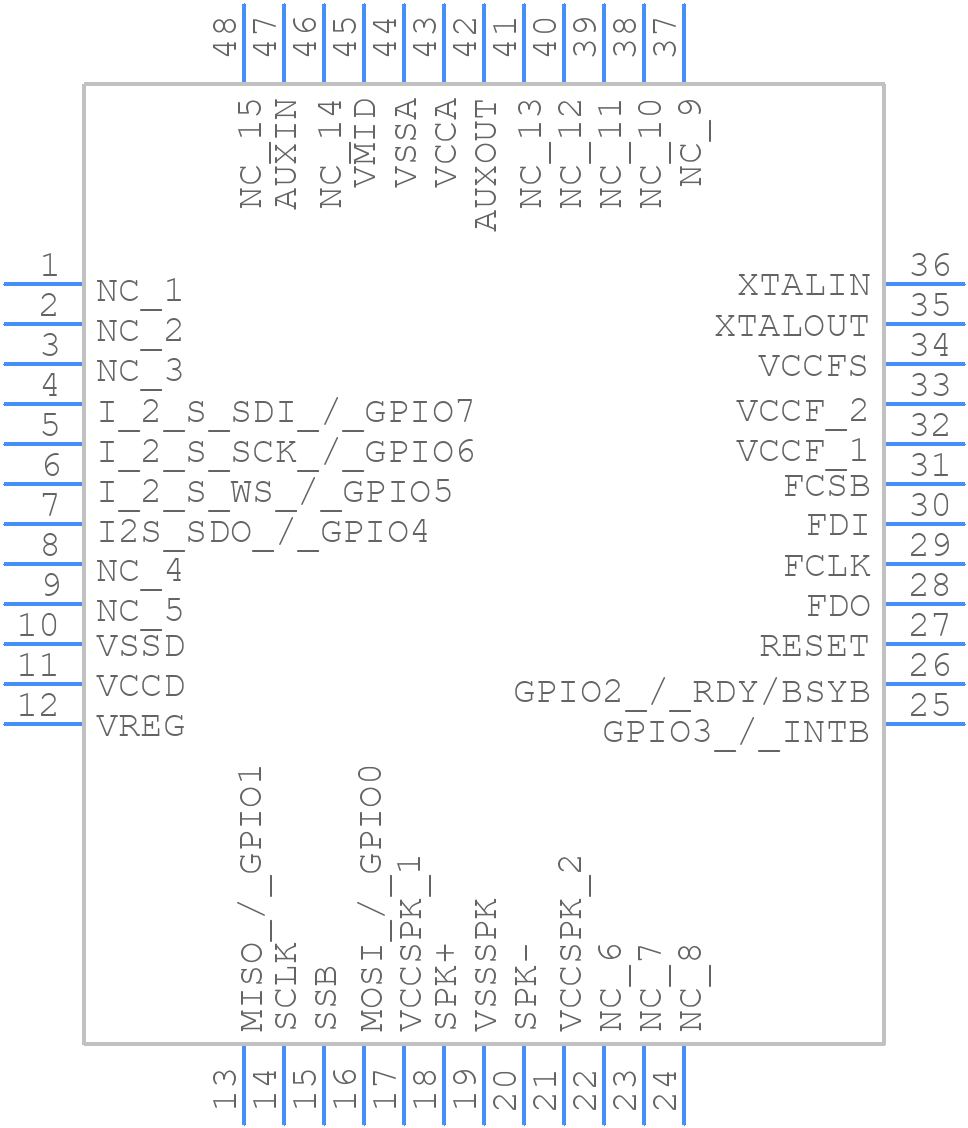

Symbol
ISD3800FYI - Nuvoton - PCB symbol
click to zoom

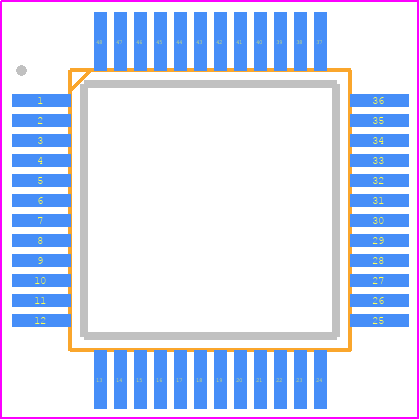

PCB Footprints
ISD3800FYI - Nuvoton PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 LEAD LQFP(7X7X1.4MM FOOTPRINT 2.0MM)_
click to zoom
3D Models
ISD3800FYI - Nuvoton - 3D model - Quad Flat Packages - 48 LEAD LQFP(7X7X1.4MM FOOTPRINT 2.0MM)_
click to zoom

ISD3800FYI Details

  • Manufacturer Part Number:

    ISD3800FYI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nuvoton Technology Corp

  • Consumer IC Type:

    SPEECH SYNTHESIZER WITH RCDG

  • JESD-30 Code:

    S-PQFP-G48

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • On Chip Memory Type:

    FLASH

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • Reading Time-Max:

    3840 s

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

ISD3800FYI Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up VDD first, followed by VDDA and VDDIO. This ensures that the internal voltage regulators are properly initialized.
  • To optimize power consumption, use the power-down mode (PDN) and idle mode (IDLE) when the device is not in use. Additionally, adjust the clock frequency and voltage levels according to your application's requirements.
  • The maximum allowed capacitance for the crystal oscillator is 20pF. Exceeding this value may affect the oscillator's stability and accuracy.
  • To ensure reliable communication over the I2S interface, use a clock frequency that is within the specified range (typically 256fs to 512fs), and ensure that the transmitter and receiver are properly synchronized.
  • Keep analog and digital signals separate, and use a star topology for the power supply lines. Avoid crossing analog and digital signals, and use a ground plane to reduce noise and electromagnetic interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISD3800FYI Overview

Use the download button to access the ISD3800FYI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISD38, or try a keyword search, such as Audio Synthesizer ICs
