ISD4002-120SY - Nuvoton

ISD4002-120SY Details

• Manufacturer Part Number:

  ISD4002-120SY

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

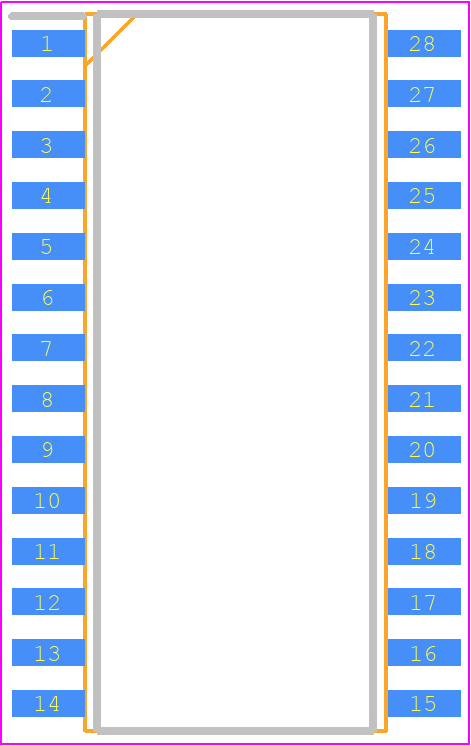

• Package Description:

  SOP-28

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Nuvoton Technology Corp

• YTEOL:

  0

• Application:

  PLAYBACK ONLY

• Consumer IC Type:

  SPEECH SYNTHESIZER

• JESD-30 Code:

  R-PDSO-G28

• Length:

  17.93 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  28

• On Chip Memory Type:

  FLASH

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Reading Time-Max:

  120 s

• Seated Height-Max:

  2.93 mm

• Supply Current-Max:

  40 mA

• Supply Voltage-Max (Vsup):

  3.3 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.52 mm
