ISD4002-240SY - Nuvoton

Description: Voice Record/Playback IC Multiple Message 4 Min SPI 28-SOIC

Download ISD4002-240SY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

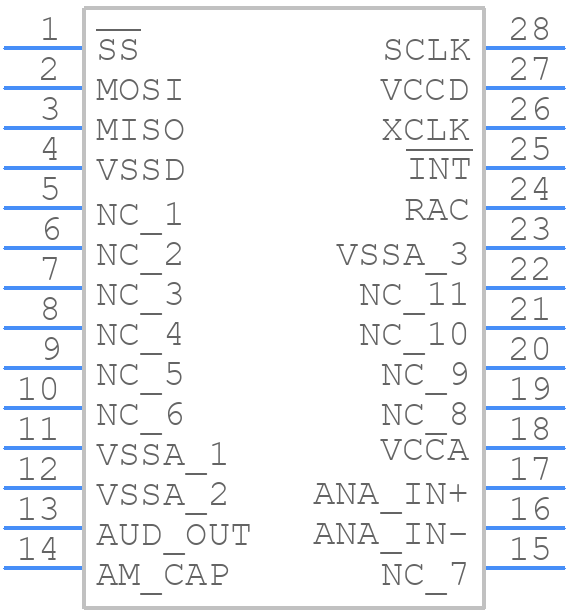

Symbol
ISD4002-240SY - Nuvoton - PCB symbol
click to zoom

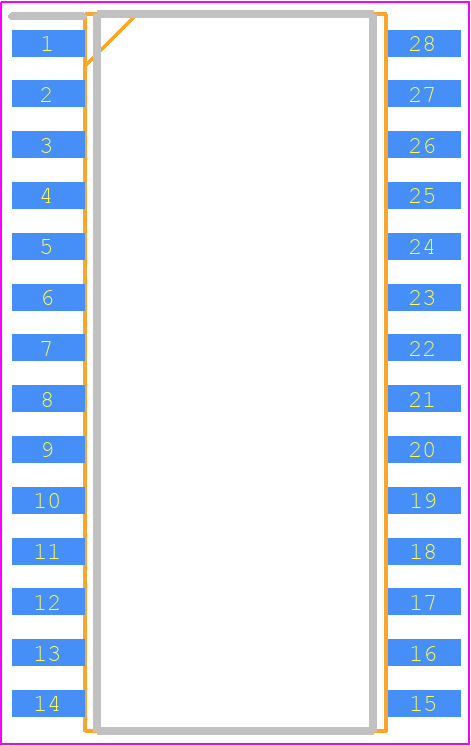

PCB Footprints
ISD4002-240SY - Nuvoton PCB footprint - Small Outline Packages - Small Outline Packages - 28-LEAD 300-MIL PLASTIC SMALL OUTLINE IC (SOIC)
click to zoom

ISD4002-240SY Details

  • Manufacturer Part Number:

    ISD4002-240SY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    0

  • Application:

    PLAYBACK ONLY

  • Consumer IC Type:

    SPEECH SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    17.93 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • On Chip Memory Type:

    FLASH

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Reading Time-Max:

    240 s

  • Seated Height-Max:

    2.93 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.52 mm

ISD4002-240SY Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ISD4002-240SY is -40°C to 85°C.
  • To prevent damage, follow the recommended soldering temperature profile, use a soldering iron with a temperature-controlled tip, and avoid applying excessive force or pressure during rework.
  • The maximum allowed voltage on the VCC pin is 3.6V. Exceeding this voltage may cause permanent damage to the device.
  • To minimize power consumption, ensure that the device is in the correct power-down mode, reduce the clock frequency, and minimize the number of active circuits.
  • The typical current consumption of the ISD4002-240SY in active mode is around 2.5mA, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISD4002-240SY Overview

Use the download button to access the ISD4002-240SY schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISD40, or try a keyword search, such as Audio Synthesizer ICs
