ISD4004-08MPY - Nuvoton

Description: Audio record/playback i.c. SPI interface, 8 minutes max. storage

Download ISD4004-08MPY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

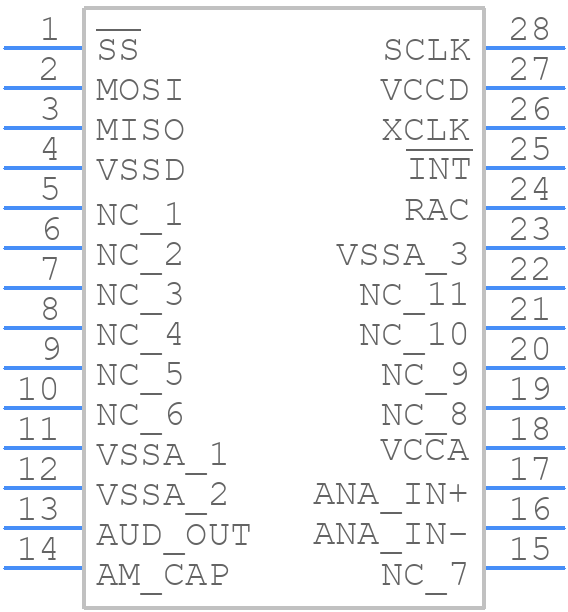

ISD4004-08MPY - Nuvoton - PCB symbol
click to zoom
PCB Footprints

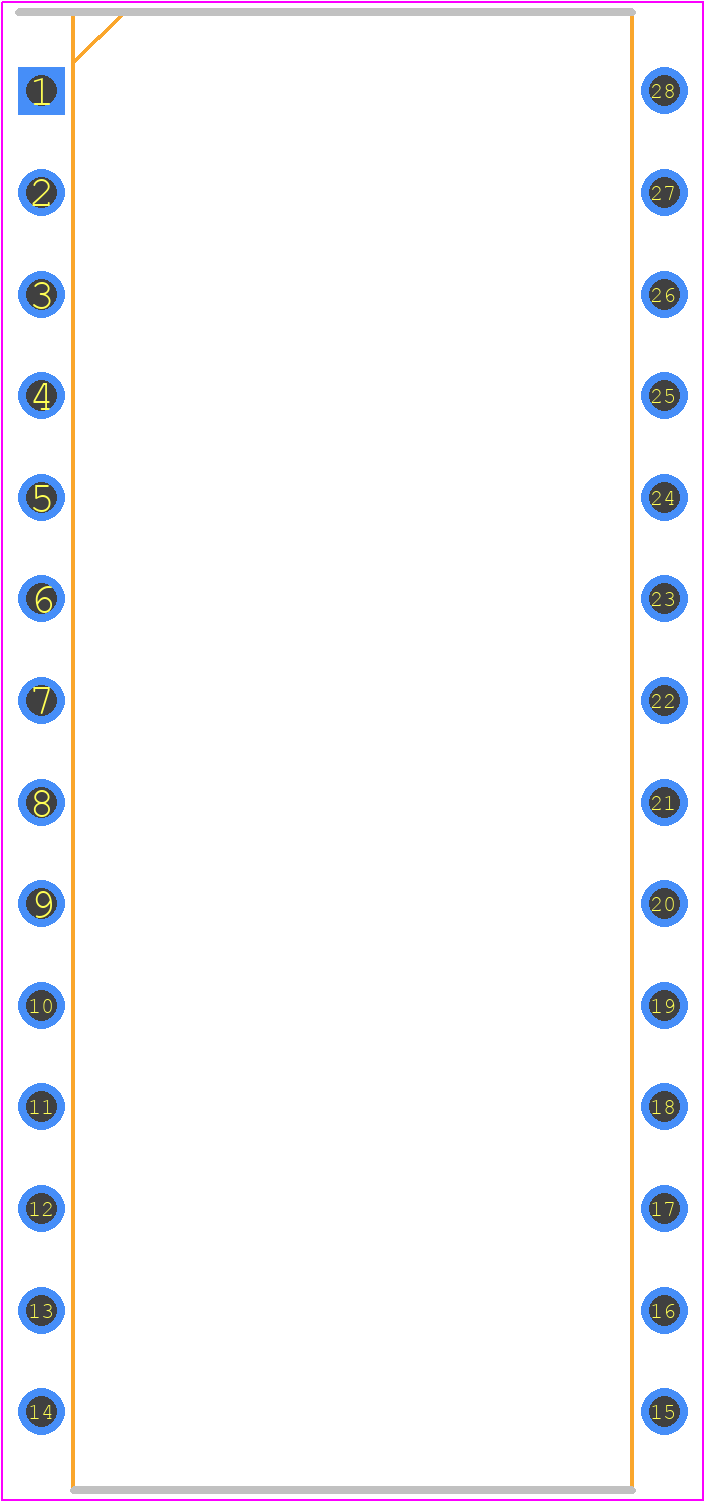

ISD4004-08MPY - Nuvoton PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-LEAD 600-MIL PLASTIC DUAL INLINE PACKAGE (PDIP)
click to zoom
3D Models
ISD4004-08MPY - Nuvoton - 3D model - Dual-In-Line Packages - 28-LEAD 600-MIL PLASTIC DUAL INLINE PACKAGE (PDIP)
click to zoom

ISD4004-08MPY Details

  • Manufacturer Part Number:

    ISD4004-08MPY

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    0

  • Consumer IC Type:

    SPEECH SYNTHESIZER WITH RCDG

  • JESD-30 Code:

    R-PDIP-T28

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • On Chip Memory Type:

    FLASH

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Reading Time-Max:

    480 s

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

ISD4004-08MPY Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the ISD4004-08MPY is 2.7V to 3.6V.
  • A pull-up resistor is not required for the ISD4004-08MPY, as it has an internal pull-up resistor. However, if you need to use an external pull-up resistor, a 1kΩ to 10kΩ resistor is recommended.
  • The maximum clock frequency supported by the ISD4004-08MPY is 4MHz.
  • The ISD4004-08MPY can be programmed using the Nuvoton ISP (In-System Programming) tool or a third-party programmer. The device can also be programmed using the UART interface.
  • The power consumption of the ISD4004-08MPY varies depending on the operating frequency and voltage. At 3.3V and 1MHz, the typical power consumption is around 1.5mA.
