ISD4004-08MSI - Winbond

Description: Pad Opening (min) 90 x 90 m

Download ISD4004-08MSI Model

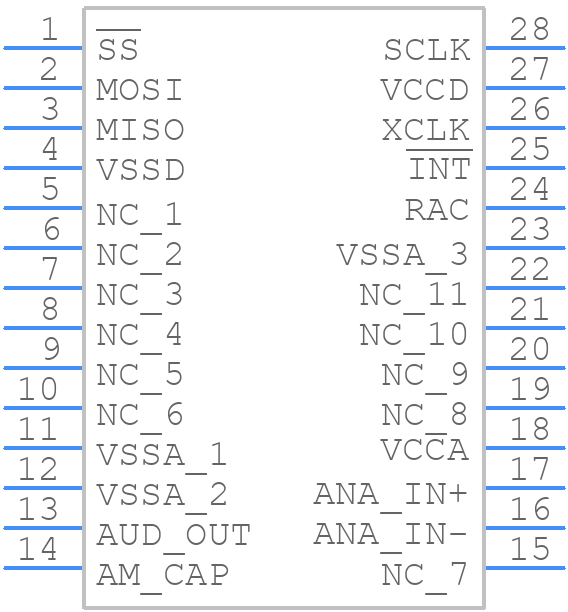

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

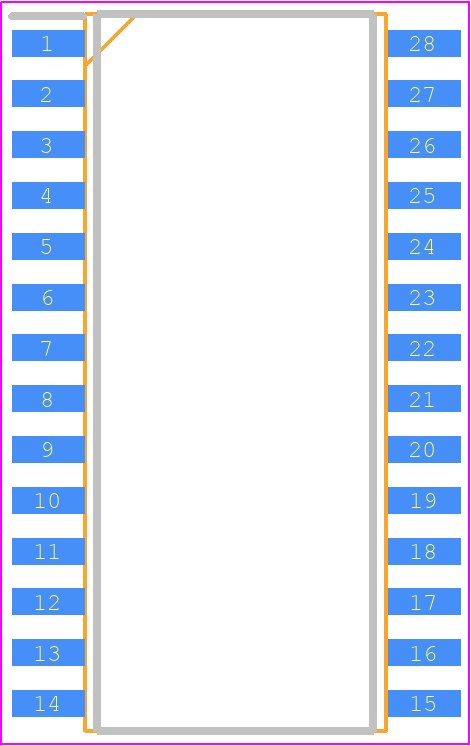

ISD4004-08MSI - Winbond PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead 0.300-Inch Plastic Small Outline Integrated Circuit (SOIC) (S)
click to zoom
3D Models
ISD4004-08MSI - Winbond  - 3D model - Small Outline Packages - 28-Lead 0.300-Inch Plastic Small Outline Integrated Circuit (SOIC) (S)
click to zoom

ISD4004-08MSI Details

  • Manufacturer Part Number:

    ISD4004-08MSI

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, PLASTIC, SOIC-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    0

  • Application:

    HAND-HELD DEVICES

  • Consumer IC Type:

    SPEECH SYNTHESIZER WITH RCDG

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    17.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • On Chip Memory Type:

    ROM

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Reading Time-Max:

    480 s

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISD4004-08MSI Overview

Use the download button to access the ISD4004-08MSI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISD40, or try a keyword search, such as Audio Synthesizer ICs
