ISF15ACP4 - NKK Switches

ISF15ACP4 Details

• Manufacturer Part Number:

  ISF15ACP4

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.31

• Manufacturer:

  NKK Switches

• Actuator Travel:

  1.778 mm

• Actuator Type:

  PUSHBUTTON

• Contact Current(DC)-Max:

  0.1 A

• Contact (DC) Max Rating R Load:

  0.1A@12VDC

• Contact Function:

  OFF-(ON)

• Contact Resistance:

  0.2 mΩ

• Contact Voltage(DC)-Max:

  12 V

• Dielectric Withstand Volts:

  125VAC V

• Electrical Life:

  1000000 Cycle(s)

• Illumination:

  LED

• Insulation Resistance:

  100000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

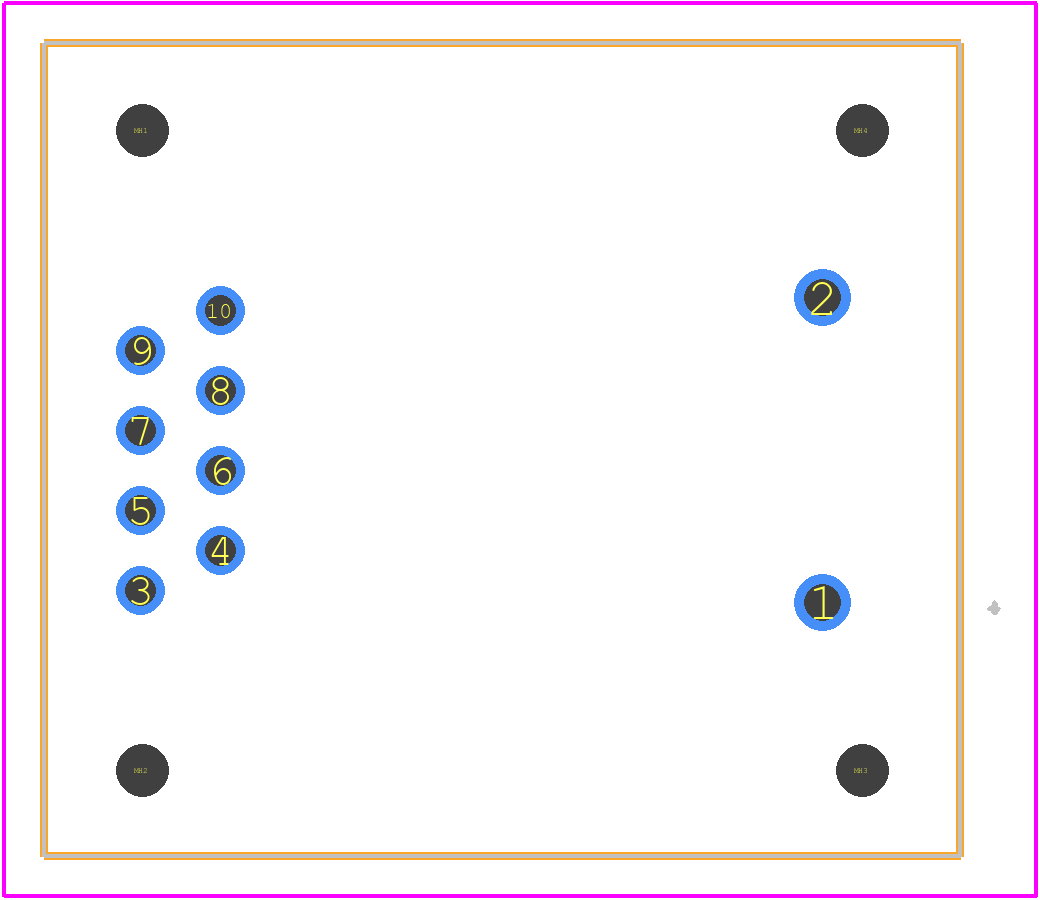

• PCB Hole Count:

  14

• Sealing:

  EPOXY

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPST

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Length:

  0.13 inch

• Termination Type:

  SOLDER
