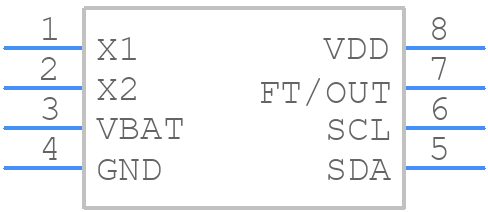

ISL12008IB8Z - Renesas Electronics

ISL12008IB8Z Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ISL12008IB8Z?
  A good PCB layout for the ISL12008IB8Z involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to place the device close to the crystal oscillator and to use a low-ESR capacitor for the VDD pin.
• How do I ensure the accuracy of the clock output of the ISL12008IB8Z?
  To ensure the accuracy of the clock output, it's essential to use a high-quality crystal oscillator, ensure the crystal is properly matched to the device, and minimize the noise on the clock signal lines. Additionally, the device should be operated within the recommended temperature range, and the power supply should be clean and stable.
• What is the maximum frequency that the ISL12008IB8Z can operate at?
  The ISL12008IB8Z can operate at frequencies up to 125MHz, but the maximum frequency may vary depending on the specific application and the quality of the crystal oscillator used.
• How do I configure the ISL12008IB8Z for use with a specific clock frequency?
  The ISL12008IB8Z can be configured for use with a specific clock frequency by selecting the appropriate crystal oscillator frequency and configuring the device's internal clock divider. The device's datasheet provides a detailed description of the clock configuration process.
• What is the power consumption of the ISL12008IB8Z?
  The power consumption of the ISL12008IB8Z depends on the specific application and the clock frequency used. However, the device's datasheet specifies a typical current consumption of 1.5mA at 3.3V and 25°C.
