ISL12020MIRZ-T - Renesas Electronics

Description: Low Power RTC with Battery Backed SRAM, Integrated ±5ppm Temperature Compensation and Auto Daylight Saving ISL12020M The ISL12020M device is a low power Real Time Clock (RTC) with an embedded temperature sensor and crystal. Device functions include oscillator compensation, clock/calendar, power fail and low battery monitors, brownout indicator, one-time, periodic or polled alarms, intelligent battery backup switching, Battery Reseal™ function and 128 bytes of battery-backed user SRAM. The device is offered

Download ISL12020MIRZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

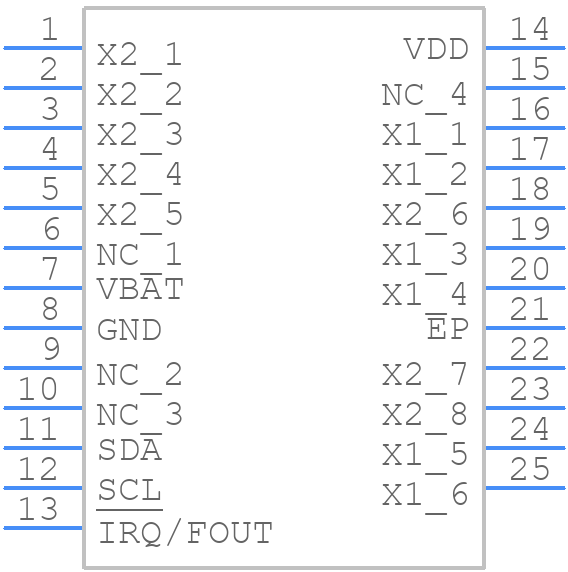

ISL12020MIRZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL12020MIRZ-T - Renesas Electronics PCB footprint - Other - Other - L20.5.5x4.0
click to zoom
3D Models
ISL12020MIRZ-T - Renesas Electronics - 3D model - Other - L20.5.5x4.0
click to zoom

ISL12020MIRZ-T Details

  • Manufacturer Part Number:

    ISL12020MIRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    DFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    L20.5.5X4.0

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-11-22

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    R-PDSO-N20

  • JESD-609 Code:

    e3

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Equivalence Code:

    SOLCC20,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    128

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    SECONDS

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Volatile:

    NO

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK
