Description:The ISL12057 device is a low-power, real-time clock that is pin compatible and functionally equivalent to Maxim DS1337 with clock/calendar and alarm function. The oscillator uses an external, low-cost 32. 768kHz crystal with 6pF load capacitance. The real-time clock tracks time with separate registers for hours, minutes, and seconds. The device has calendar registers for date, month, year, and day of the week. The calendar is accurate through 2099, with automatic leap year correction.
A good PCB layout for the ISL12057IBZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the crystal oscillator to minimize noise. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the accuracy of the clock output from the ISL12057IBZ-T, it's essential to use a high-quality crystal oscillator with a low equivalent series resistance (ESR) and a high-quality capacitor with a low equivalent series inductance (ESL). Additionally, the PCB layout should be designed to minimize noise and ensure a stable power supply.
The maximum frequency deviation of the ISL12057IBZ-T is ±20 ppm over the operating temperature range. This deviation can affect the system design, particularly in applications requiring high-frequency accuracy. To mitigate this, designers can use a more accurate external clock source or implement a clock correction mechanism in their system.
The ISL12057IBZ-T has a built-in POR and BOR function to ensure a reliable startup and operation. To handle these functions, designers should ensure a stable power supply, use a capacitor to filter the power supply voltage, and implement a reset circuit to handle the POR and BOR signals.
The ISL12057IBZ-T has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, designers should consider the thermal resistance of the package, use a heat sink if necessary, and ensure good airflow around the device. Additionally, designers should follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL12057IBZ-T Overview

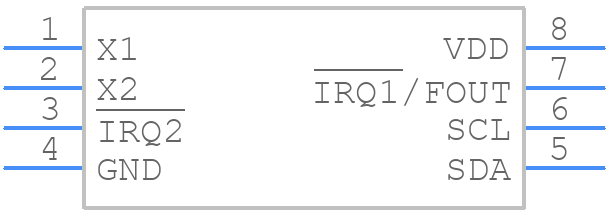

Use the download button to access the ISL12057IBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL12,
or try a keyword search, such as Timers or RTCs
