Description:The ISL12057 device is a low-power, real-time clock that is pin compatible and functionally equivalent to Maxim DS1337 with clock/calendar and alarm function. The oscillator uses an external, low-cost 32. 768kHz crystal with 6pF load capacitance. The real-time clock tracks time with separate registers for hours, minutes, and seconds. The device has calendar registers for date, month, year, and day of the week. The calendar is accurate through 2099, with automatic leap year correction.
A good PCB layout for the ISL12057IBZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the crystal oscillator. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to minimize the length of the clock signal traces.
To ensure the accuracy of the RTC, it's essential to use a high-quality crystal oscillator with a low ppm tolerance, maintain a stable power supply voltage, and minimize temperature variations. Additionally, the device should be calibrated periodically to account for any drift in the crystal frequency.
The ISL12057IBZ can drive a clock output frequency of up to 32 kHz, but the maximum frequency that can be driven depends on the specific application and the load capacitance of the clock signal. It's recommended to consult the datasheet and application notes for more information.
The ISL12057IBZ can be interfaced with a microcontroller or other digital devices using a serial interface such as I2C or SPI. The device provides a 400 kHz I2C interface and a 4-wire SPI interface, and the specific interface used depends on the application requirements.
The power consumption of the ISL12057IBZ depends on the specific operating mode and frequency of operation. To minimize power consumption, it's recommended to use the device's low-power modes, reduce the clock frequency, and minimize the voltage supply. Additionally, using a low-power oscillator and minimizing the load capacitance of the clock signal can also help reduce power consumption.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL12057IBZ Overview

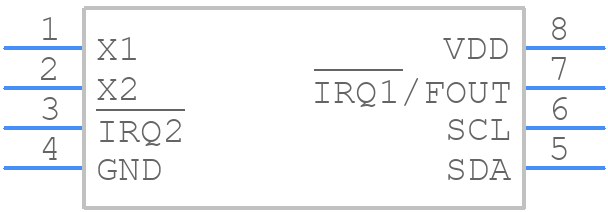

Use the download button to access the ISL12057IBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL12,
or try a keyword search, such as Timers or RTCs
