Description:The ISL1208 device is a low power real time clock with timing and crystal compensation, clock/calendar, power fail indicator, periodic or polled alarm, intelligent battery backup switching and battery-backed user SRAM. The oscillator uses an external, low-cost 32. 768kHz crystal. The real time clock tracks time with separate registers for hours, minutes, and seconds. The device has calendar registers for date, month, year and day of the week. The calendar is accurate through 2099, with automatic leap year c
A good PCB layout for the ISL1208IB8Z involves keeping the crystal oscillator circuitry away from noisy digital signals, using a solid ground plane, and minimizing trace lengths and loops. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure reliable startup, use a high-quality crystal with a low equivalent series resistance (ESR), and ensure the PCB layout is optimized for the oscillator circuit. Additionally, consider using a startup capacitor (e.g., 10nF) between the XTAL1 and GND pins to help the oscillator start up quickly and reliably, especially in cold temperatures.
The recommended power-up sequence for the ISL1208IB8Z is to apply VDD before applying a clock signal to the XTAL1 pin. This ensures that the internal circuitry is properly initialized before the oscillator starts.
When the ISL1208IB8Z is in a low-power mode or powered down, the clock output (CLKOUT) is high-impedance. To prevent unwanted clock signals from being generated, it is recommended to add a pull-down resistor (e.g., 1kΩ) to the CLKOUT pin to ensure it is held low when the device is not actively driving the clock signal.
When selecting a crystal oscillator for use with the ISL1208IB8Z, consider the crystal's frequency tolerance, equivalent series resistance (ESR), and load capacitance. A crystal with a frequency tolerance of ±20 ppm or better, an ESR of 30 Ω or less, and a load capacitance of 10-20 pF is recommended.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL1208IB8Z Overview

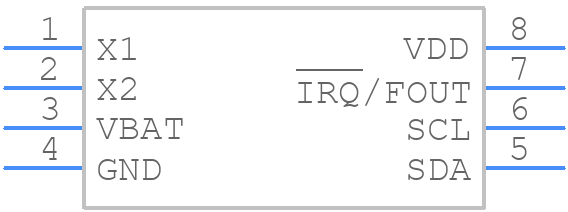

Use the download button to access the ISL1208IB8Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL12,
or try a keyword search, such as Timers or RTCs
