Description:The ISL1219 device is a low power real time clock with Event Detect and Time Stamp function, timing and crystal compensation, clock/calendar, power fail indicator, periodic or polled alarm, intelligent battery backup switching and 2 Bytes of battery-backed user SRAM. The oscillator uses an external, low-cost 32. 768kHz crystal. The real time clock tracks time with separate registers for hours, minutes, and seconds. The device has calendar registers for date, month, year and day of the week. The calendar is
A good PCB layout for the ISL1219IUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the crystal oscillator. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to minimize the length of the clock signal traces.
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which involves applying VCC before the oscillator starts. Also, ensure that the RST pin is pulled high during power-up, and that the oscillator is stable before accessing the device.
When selecting a crystal oscillator for the ISL1219IUZ, consider the frequency tolerance, load capacitance, and equivalent series resistance (ESR). The recommended crystal frequency is 32.768 kHz, and the load capacitance should be around 12-15 pF. Also, ensure the ESR is low to minimize startup time and ensure reliable operation.
To troubleshoot issues with the ISL1219IUZ, start by verifying the power supply voltage and ensuring it's within the recommended range. Check the oscillator circuit for proper connection and component values. Use an oscilloscope to verify the clock signal and ensure it's stable. Also, check the RST pin and ensure it's properly pulled high during power-up.
The ISL1219IUZ is rated for operation from -40°C to 85°C. To ensure reliable operation over temperature, ensure good thermal design practices, such as providing adequate heat dissipation and avoiding thermal gradients. Also, consider the thermal coefficient of the crystal oscillator and ensure it's within the recommended range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL1219IUZ Overview

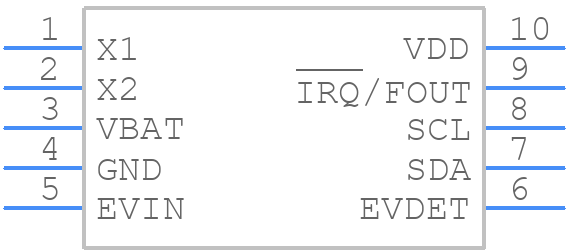

Use the download button to access the ISL1219IUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL12,
or try a keyword search, such as Timers or RTCs
