Description:The digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The position of the wiper is controlled by the user through the I2C bus interface. The potentiometer has an associated volatile Wiper Register (WR) and a non-volatile Initial Value Register (IVR) that can be directly written to and read by the user. The contents of the WR control the position of the wiper. At power up, the device recalls the contents of the DCP's IVR to the WR. The highly precise
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure reliable communication, it is recommended to use a proper communication protocol, such as SPI or I2C, and to follow the recommended interface timing and signal integrity guidelines in the datasheet. Additionally, using a buffer or repeater can help to improve signal quality and reduce errors.
The ISL22317WFRTZ has an operating temperature range of -40°C to +125°C, but it's recommended to derate the device's performance and power consumption at extreme temperatures. Consult the datasheet and application notes for more information on temperature-related considerations.
Renesas recommends following a specific power-up and power-down sequencing to ensure proper device operation and prevent damage. This includes powering up the VCC supply before the VDD supply, and powering down the VDD supply before the VCC supply. Consult the datasheet and application notes for more information.
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 10nF to 100nF, placed as close as possible to the device's power pins. The specific capacitor value and type may vary depending on the application and operating frequency.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL22317WFRTZ Overview

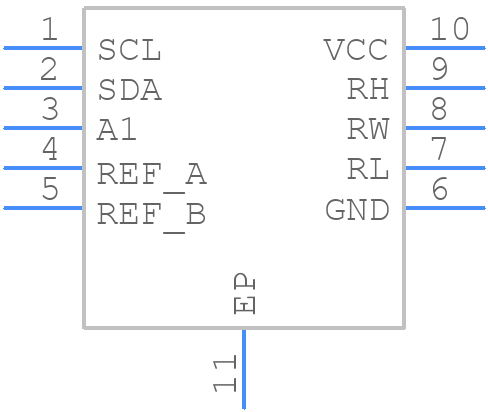

Use the download button to access the ISL22317WFRTZ schematic symbol, PCB footprint, and 3D model.
