ISL22326WFR16Z-TK - Renesas Electronics

Description: The ISL22326 integrates two digitally controlled potentiometers (XDCP) and non-volatile memory on a monolithic CMOS integrated circuit. The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. Each potentiometer has an associated volatile Wiper Register (WR) and a non-volatile Initial Value Register (IVR) that can be directly written to and read by the user. The cont

Download ISL22326WFR16Z-TK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

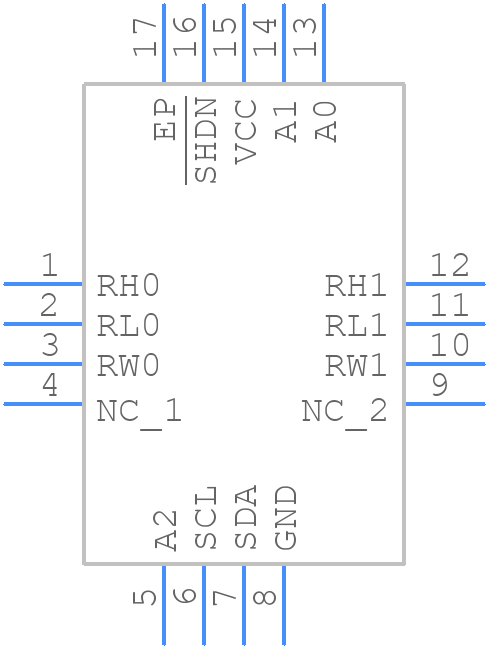

ISL22326WFR16Z-TK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL22326WFR16Z-TK - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L16.4x4A-2
click to zoom
3D Models
ISL22326WFR16Z-TK - Renesas Electronics - 3D model - Quad Flat No-Lead - L16.4x4A-2
click to zoom

ISL22326WFR16Z-TK Details

  • Manufacturer Part Number:

    ISL22326WFR16Z-TK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.4X4A

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-04

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    128

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.03 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    4 mm

ISL22326WFR16Z-TK Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ISL22326WFR16Z-TK has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
  • Renesas recommends using a 10uF to 22uF X5R or X7R ceramic capacitor with a voltage rating of 10V or higher as the input capacitor. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • The output voltage of the ISL22326WFR16Z-TK can be adjusted by connecting a resistor divider network between the VOUT pin and the GND pin. The resistor values can be calculated using the formula provided in the datasheet, and the output voltage can be set to any value between 0.8V and 5.5V.
  • The ISL22326WFR16Z-TK has a maximum output current capability of 3A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal conditions. It is recommended to check the datasheet and application notes for more information on output current capability and thermal derating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL22326WFR16Z-TK Overview

Use the download button to access the ISL22326WFR16Z-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL22, or try a keyword search, such as Digital Potentiometers
