ISL22326WFV14Z - Renesas Electronics

Description: The ISL22326 integrates two digitally controlled potentiometers (XDCP) and non-volatile memory on a monolithic CMOS integrated circuit. The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. Each potentiometer has an associated volatile Wiper Register (WR) and a non-volatile Initial Value Register (IVR) that can be directly written to and read by the user. The cont

Download ISL22326WFV14Z Model

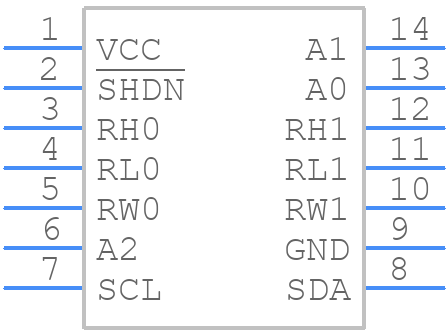

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL22326WFV14Z - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 14 Ld TSSOP
click to zoom
3D Models
ISL22326WFV14Z - Renesas Electronics  - 3D model - Small Outline Packages - 14 Ld TSSOP
click to zoom

ISL22326WFV14Z Details

  • Manufacturer Part Number:

    ISL22326WFV14Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Manufacturer Package Code:

    M14.173

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-04

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    128

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    4.4 mm

ISL22326WFV14Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL22326WFV14Z involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VCC pin.
  • To ensure proper power and decoupling, connect a 0.1uF ceramic capacitor between the VCC pin and the GND pin, and a 10uF electrolytic capacitor between the VCC pin and the GND pin. Also, make sure the power supply is clean and stable, and that the device is operated within the recommended voltage range.
  • The recommended clock frequency for the ISL22326WFV14Z is between 10kHz to 50kHz. However, the device can operate at frequencies up to 100kHz, but with reduced performance and increased power consumption.
  • To configure the ISL22326WFV14Z for optimal noise rejection, use the internal clock, enable the internal reference voltage, and set the gain to the lowest possible value. Additionally, use a low-pass filter on the analog input signal and ensure the device is operated in a low-noise environment.
  • The maximum allowed input voltage for the ISL22326WFV14Z is 5.5V. Exceeding this voltage may damage the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL22326WFV14Z Overview

Use the download button to access the ISL22326WFV14Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL22, or try a keyword search, such as Digital Potentiometers
