Description:The ISL23315 is a volatile, low voltage, low noise, low power, I2C Bus™, 256 Taps, single digitally controlled potentiometer (DCP), which integrates DCP core, wiper switches and control logic on a monolithic CMOS integrated circuit. The digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. The potentiometer has an associated volatile Wiper Register (WR) that can be dire
A good PCB layout for the ISL23315WFUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to place the device close to the power supply and use a decoupling capacitor between the VCC and GND pins.
To ensure the ISL23315WFUZ operates within its specified temperature range, it's essential to provide adequate heat sinking, avoid overheating, and keep the device away from heat sources. The device should be mounted on a PCB with a thermal pad connected to a heat sink or a metal plate to dissipate heat efficiently.
When handling the ISL23315WFUZ, it's essential to take precautions to prevent damage. This includes handling the device by the body, avoiding touching the pins, using an anti-static wrist strap or mat, and storing the device in an anti-static bag or container.
To troubleshoot issues with the ISL23315WFUZ, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly connected and configured. Check for any signs of overheating, and ensure that the device is operated within its specified temperature range. If the issue persists, consult the datasheet and application notes or contact Renesas Electronics Corporation's technical support.
When using the ISL23315WFUZ in a high-reliability or safety-critical application, it's essential to consider factors such as fault tolerance, redundancy, and fail-safe operation. Ensure that the device is operated within its specified parameters, and implement adequate protection mechanisms, such as overvoltage protection, undervoltage protection, and overcurrent protection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL23315WFUZ Overview

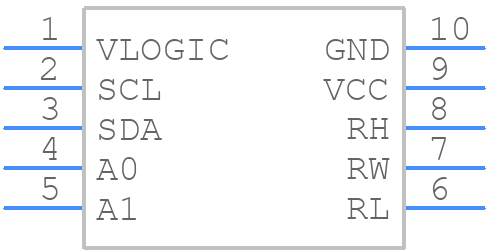

Use the download button to access the ISL23315WFUZ schematic symbol, PCB footprint, and 3D model.
