Description:The ISL23318 is a volatile, low voltage, low noise, low power, I2C Bus™, 128 Taps, single digitally controlled potentiometer (DCP), which integrates DCP core, wiper switches and control logic on a monolithic CMOS integrated circuit. The digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. The potentiometer has an associated volatile Wiper Register (WR) that can be dire
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Renesas recommends using an external overvoltage protection (OVP) circuit, such as a voltage supervisor or a dedicated OVP IC, to protect the device from voltage transients and surges. The OVP circuit should be designed to trigger at a voltage slightly above the maximum recommended operating voltage of 5.5V.
The maximum allowed power dissipation for the ISL23318WFUZ is dependent on the operating conditions and package type. According to the datasheet, the maximum power dissipation is 1.4W for the WFUZ package. However, it's essential to perform thermal analysis and design the system to ensure the device operates within the recommended temperature range to prevent overheating.
The ISL23318WFUZ is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics and ensure proper heat sinking and thermal management to prevent overheating. Renesas provides thermal derating guidelines in the datasheet to help designers estimate the device's performance at elevated temperatures.
Renesas provides a troubleshooting guide in their application note AN1965, which includes steps to identify and resolve common issues, such as power sequencing, voltage regulator design, and layout-related problems. Additionally, designers can use Renesas' development tools, such as the ISL23318 evaluation board, to test and debug their designs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL23318WFUZ Overview

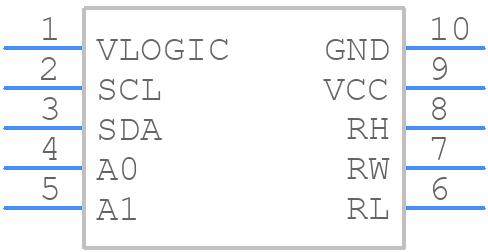

Use the download button to access the ISL23318WFUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL23,
or try a keyword search, such as Digital Potentiometers
