Description:The ISL23328 is a volatile, low voltage, low noise, low power, 128-Tap, dual digitally controlled potentiometer (DCP) with an I2C Bus™ interface. It integrates two DCP cores, wiper switches and control logic on a monolithic CMOS integrated circuit. Each digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. Each potentiometer has an associated volatile Wiper Register (WR
A good PCB layout for the ISL23328WFRUZ-T7A involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to place the device close to the power supply and use a decoupling capacitor between the VCC and GND pins.
The ISL23328WFRUZ-T7A requires a single 5V power supply. It's recommended to power the device with a clean, low-noise power supply, and to ensure that the power supply is stable before applying signals to the device. The power sequencing requirements are not critical, but it's recommended to power up the device after the power supply has stabilized.
The maximum operating frequency of the ISL23328WFRUZ-T7A is 100 kHz. However, the device can operate at higher frequencies, but with reduced performance and accuracy.
The ISL23328WFRUZ-T7A is a programmable device that can be programmed using a serial interface. The device requires a programming voltage of 5V, and the programming protocol is a standard SPI interface. The programming requirements are detailed in the datasheet, and Renesas provides a programming software tool to simplify the programming process.
The ISL23328WFRUZ-T7A has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. A thermal management strategy should be implemented to ensure the device operates within the recommended temperature range, such as using a heat sink or thermal pad.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL23328WFRUZ-T7A Overview

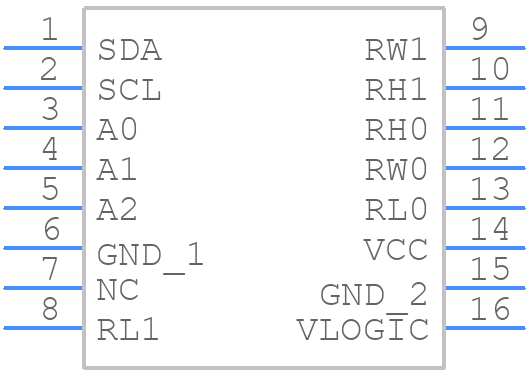

Use the download button to access the ISL23328WFRUZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL23,
or try a keyword search, such as Digital Potentiometers
