Description:The ISL23415 is a volatile, low voltage, low noise, low power, SPI™ bus, 256 taps, single digitally controlled potentiometer (DCP), which integrates DCP core, wiper switches and control logic on a monolithic CMOS integrated circuit. The digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the SPI bus interface. The potentiometer has an associated volatile Wiper Register (WR) that can be dire
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
Renesas recommends following their guidelines for vibration testing and mitigation, including using a robust PCB design, securing the device with screws or adhesive, and using vibration-dampening materials. Additionally, consider using a device with a higher vibration rating, such as the ISL23415WFUZ-T.
The internal voltage regulator has a limited current capability and may not be suitable for high-current applications. If your design requires a higher current or tighter voltage regulation, consider using an external voltage regulator. Renesas provides guidance on selecting an external regulator in their application note AN1964.
The ISL23415WFUZ has built-in overcurrent protection, but you may need to add external circuitry for fault detection and response. Renesas provides examples of overcurrent protection circuits and fault detection methods in their application note AN1963.
Renesas recommends following their EMI and RFI mitigation guidelines, including using a shielded enclosure, minimizing trace lengths, and using EMI filters. Additionally, consider using a device with built-in EMI filtering, such as the ISL23415WFUZ-T.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL23415WFUZ Overview

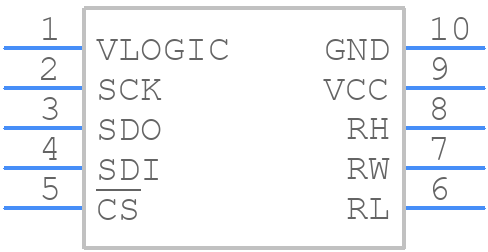

Use the download button to access the ISL23415WFUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL23,
or try a keyword search, such as Digital Potentiometers
