Part Image

ISL24201IRTZ - Renesas Electronics

Description: The ISL24201 provides an 8-bit programmable current sink that is used in conjunction with an external voltage divider and buffer amplifier to generate a voltage source that is positioned between the analog supply voltage and ground. The current sinks resolution is controlled by an external resistor, RSET, and the span of the VCOM voltage is controlled by the voltage divider resistor ratio and the source impedance of R1 and R2. This device has an 8-bit data register and 8-bit EEPROM for storing a volatile an

Download ISL24201IRTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

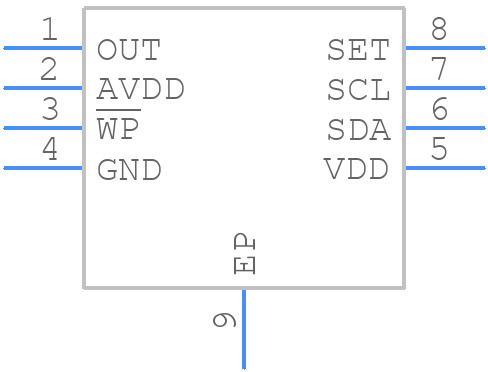

ISL24201IRTZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL24201IRTZ - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L8.3x3A 8 LEAD THIN DUAL FLAT NO-LEAD PLASTIC PACKAGE
click to zoom
3D Models
ISL24201IRTZ - Renesas Electronics - 3D model - Small Outline No-lead - L8.3x3A 8 LEAD THIN DUAL FLAT NO-LEAD PLASTIC PACKAGE
click to zoom

ISL24201IRTZ Details

  • Manufacturer Part Number:

    ISL24201IRTZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TDFN

  • Package Description:

    3 X 3, ROHS COMPLIANT, PLASTIC, MO-229WEEC-2, TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.3X3K

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL24201IRTZ Overview

Use the download button to access the ISL24201IRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL24, or try a keyword search, such as Other Signal Circuits
