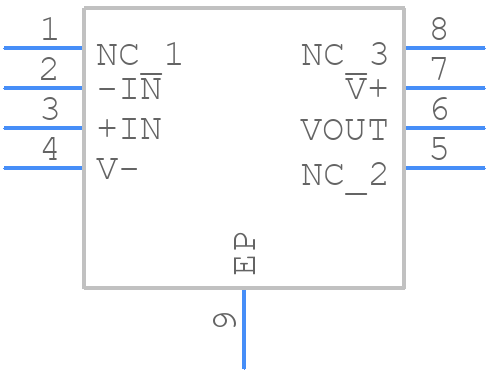

ISL28107FRTZ-T13 - Renesas Electronics

ISL28107FRTZ-T13 Details

• Manufacturer Part Number:

  ISL28107FRTZ-T13

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  TDFN-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.0006 µA

• Bias Current-Max (IIB) @25C:

  0.0003 µA

• Common-mode Reject Ratio-Min:

  115 dB

• Common-mode Reject Ratio-Nom:

  145 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  190 µV

• JESD-30 Code:

  S-PDSO-N8

• Length:

  3 mm

• Low-Bias:

  YES

• Low-Offset:

  NO

• Micropower:

  YES

• Neg Supply Voltage Limit-Max:

  -21 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.12,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR, 13 INCH

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  0.8 mm

• Slew Rate-Nom:

  0.32 V/us

• Supply Current-Max:

  0.35 mA

• Supply Voltage Limit-Max:

  21 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  1000

• Voltage Gain-Min:

  3162277.66

• Wideband:

  NO

• Width:

  3 mm
