ISL28110FBZ - Renesas Electronics

Description: The ISL28110, ISL28210, are single and dual JFET amplifiers featuring low noise, high slew rate, low input bias current and offset voltage, making them the ideal choice for high impedance applications where precision and low noise are important. The combination of precision, low noise, and high speed combined with a small footprint provides the user with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision medical and analytical instrum

Download ISL28110FBZ Model

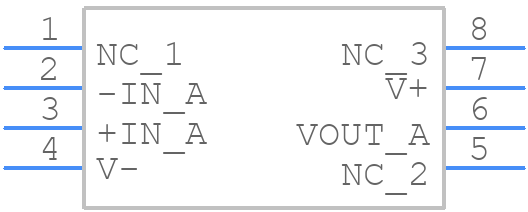

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL28110FBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8. 15E
click to zoom
3D Models
ISL28110FBZ - Renesas Electronics  - 3D model - Small Outline Packages - M8. 15E
click to zoom

ISL28110FBZ Details

  • Manufacturer Part Number:

    ISL28110FBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15E

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000235 µA

  • Bias Current-Max (IIB) @25C:

    0.000002 µA

  • Common-mode Reject Ratio-Min:

    88 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1300 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -21 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    3.8 mA

  • Supply Voltage Limit-Max:

    21 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    12500

  • Voltage Gain-Min:

    141253.75

  • Wideband:

    NO

  • Width:

    3.9 mm

ISL28110FBZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL28110FBZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR of 0.1 ohms is recommended for the output capacitor.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • The ISL28110FBZ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's performance and consider additional thermal management measures for high-temperature applications.
  • The output voltage of the ISL28110FBZ can be calculated using the formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the resistors in the feedback network, VIN is the input voltage, and VREF is the reference voltage.
