ISL28113FHZ-T7A - Renesas Electronics

Description: The ISL28113, ISL28213 and ISL28413 are single, dual and quad channel general purpose micropower, rail-to-rail input and output operational amplifiers with supply voltage range of 1. 8V to 5. 5V. Key features are a low supply current of 130µA maximum per channel at room temperature, a low bias current and a wide input voltage range, which enables the ISL28x13 devices to be excellent general purpose operational amplifiers for a wide range of applications. The ISL28113 is available in the SC70-5 and SOT23-5 p

Download ISL28113FHZ-T7A Model

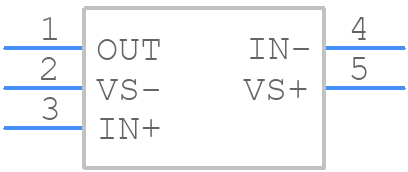

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL28113FHZ-T7A - Renesas Electronics PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - P5.064A
click to zoom
3D Models
ISL28113FHZ-T7A - Renesas Electronics  - 3D model - SOT23 (5-Pin) - P5.064A
click to zoom

ISL28113FHZ-T7A Details

  • Manufacturer Part Number:

    ISL28113FHZ-T7A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOT23

  • Package Description:

    SOT23-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    P5.064C

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-11-07

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    1

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.00002 µA

  • Common-mode Reject Ratio-Nom:

    70 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.00003 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.45 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    0.17 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2000

  • Wideband:

    NO

  • Width:

    1.6 mm

ISL28113FHZ-T7A Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ISL28113FHZ-T7A has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. Additionally, Renesas recommends using thermal vias and a heat sink to further reduce thermal resistance.
  • Renesas recommends using a pi-filter (C-R-C) or an LC filter at the input to reduce noise and ripple. The specific component values will depend on the application and input voltage range.
  • Renesas provides guidelines for EMC in their application note AN1995, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with regulatory standards.
  • The maximum allowed voltage on the enable pin (EN) is 6V, as specified in the datasheet. Exceeding this voltage may damage the device.
