Renesas provides a recommended PCB layout guide in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific application and frequency range. Renesas recommends using low-ESR capacitors with a value of 10nF to 100nF for input and output decoupling. The application note AN1995 provides more detailed guidance on capacitor selection.
The maximum power dissipation of the ISL28190FHZ-T7 is 1.4W, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W. However, the actual power dissipation may be lower depending on the application and operating conditions.
To ensure EMC, Renesas recommends following proper PCB design and layout practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Additionally, the application note AN1995 provides guidance on EMC considerations for the ISL28190FHZ-T7.
The recommended operating voltage range for the ISL28190FHZ-T7 is 2.7V to 5.5V, although the device can operate up to 6V with reduced performance. Operating the device outside the recommended range may affect its performance, reliability, and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL28190FHZ-T7 Overview

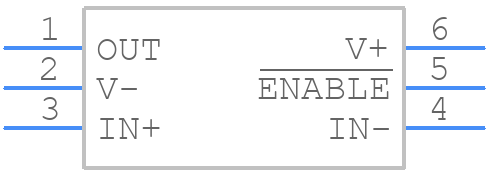

Use the download button to access the ISL28190FHZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL28,
or try a keyword search, such as Operational Amplifiers
