ISL28191FRUZ-T7 - Renesas Electronics

Description: The ISL28191 and ISL28291 are tiny single and dual ultra-low noise, ultra-low distortion operational amplifiers. They are fully specified to operate down to +3V single supply. These amplifiers have outputs that swing rail-to-rail and an input common mode voltage that extends to ground(ground sensing). The ISL28191 and ISL28291 are unity gain stable with an input referred voltage noise of 1. 7nV/√Hz. Both parts feature 0. 00018% THD+N at 1kHz. The ISL28191 is available in the space-saving 6 Ld UTDFN (1. 6mmx

Download ISL28191FRUZ-T7 Model

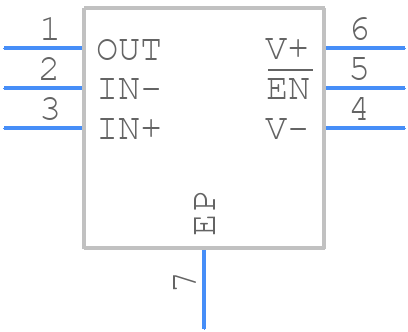

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL28191FRUZ-T7 - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L6.1.6x1.6A -+-
click to zoom
3D Models
ISL28191FRUZ-T7 - Renesas Electronics  - 3D model - Small Outline No-lead - L6.1.6x1.6A -+-
click to zoom

ISL28191FRUZ-T7 Details

  • Manufacturer Part Number:

    ISL28191FRUZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    uTDFN

  • Package Description:

    1.60 X 1.60 MM, ROHS COMPLIANT, PLASTIC, MO-229, UTDFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    L6.1.6X1.6A

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    7 µA

  • Bandwidth (3dB)-Nom:

    61 MHz

  • Bias Current-Max (IIB) @25C:

    6 µA

  • Common-mode Reject Ratio-Min:

    78 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.9 µA

  • Input Offset Voltage-Max:

    840 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.06,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.55 mm

  • Slew Rate-Min:

    12 V/us

  • Slew Rate-Nom:

    17 V/us

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    79432.82

  • Wideband:

    YES

  • Width:

    1.6 mm

ISL28191FRUZ-T7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL28191FRUZ-T7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to ensure that the output capacitor has a low equivalent series resistance (ESR) to minimize voltage ripple.
  • The ISL28191FRUZ-T7 can handle a maximum input voltage of 18V, but it is recommended to operate within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
  • The ISL28191FRUZ-T7 can be programmed using an external resistor divider network connected to the FB pin, which sets the output voltage. The output voltage can be calculated using the formula: Vout = 0.8V x (R1/R2 + 1), where R1 and R2 are the resistors in the divider network.
  • The ISL28191FRUZ-T7 has a thermal derating of 6.4mW/°C, which means that the maximum power dissipation decreases by 6.4mW for every degree Celsius above the maximum operating temperature of 125°C.
