Part Image

ISL28210FBZ-T7A - Renesas Electronics

Description: The ISL28210 are dual JFET amplifiers featuring low noise, high slew rate, low input bias current, and offset voltage, making them the ideal choice for high impedance applications where precision and low noise are important. The combination of precision, low noise, and high speed combined with a small footprint provides the user with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision medical and analytical instrumentation, sensor cond

Download ISL28210FBZ-T7A Model

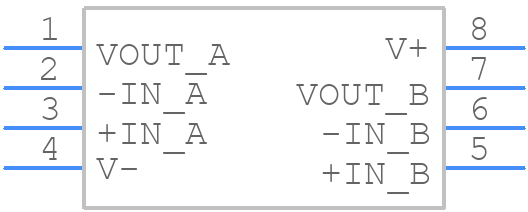

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL28210FBZ-T7A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15E
click to zoom
3D Models
ISL28210FBZ-T7A - Renesas Electronics  - 3D model - Small Outline Packages - M8.15E
click to zoom

ISL28210FBZ-T7A Details

  • Manufacturer Part Number:

    ISL28210FBZ-T7A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-012, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15E

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000245 µA

  • Common-mode Reject Ratio-Min:

    88 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1300 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -21 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    7.6 mA

  • Supply Voltage Limit-Max:

    21 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIFET

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    12500

  • Voltage Gain-Min:

    141253.75

  • Wideband:

    NO

  • Width:

    3.9 mm

ISL28210FBZ-T7A Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL28210FBZ-T7A involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended operating conditions, such as input voltage range, output current, and temperature range. Additionally, a minimum of 10uF decoupling capacitor should be placed close to the device, and the output capacitor should be selected based on the output voltage and current requirements.
  • The maximum allowed input voltage ripple for the ISL28210FBZ-T7A is 10% of the input voltage. Exceeding this limit may affect the device's performance and stability.
  • The ISL28210FBZ-T7A is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and output current. Check for proper decoupling, correct PCB layout, and ensure that the device is operated within the recommended operating conditions. Use an oscilloscope to check for voltage ripple, noise, and oscillations.
