ISL28210FBZ - Renesas Electronics

Description: The ISL28210 are dual JFET amplifiers featuring low noise, high slew rate, low input bias current, and offset voltage, making them the ideal choice for high impedance applications where precision and low noise are important. The combination of precision, low noise, and high speed combined with a small footprint provides the user with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision medical and analytical instrumentation, sensor cond

Download ISL28210FBZ Model

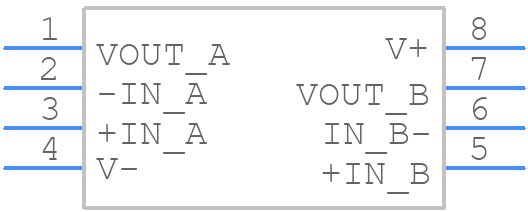

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL28210FBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15E
click to zoom
3D Models
ISL28210FBZ - Renesas Electronics  - 3D model - Small Outline Packages - M8.15E
click to zoom

ISL28210FBZ Details

  • Manufacturer Part Number:

    ISL28210FBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15E

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000245 µA

  • Bias Current-Max (IIB) @25C:

    0.000002 µA

  • Common-mode Reject Ratio-Min:

    88 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1300 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -21 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    7.6 mA

  • Supply Voltage Limit-Max:

    21 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    12500

  • Voltage Gain-Min:

    141253.75

  • Wideband:

    NO

  • Width:

    3.9 mm

ISL28210FBZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital components separate and use a star-grounding scheme to minimize noise.
  • Ensure that the output capacitor is properly sized and placed close to the IC. Also, make sure the input voltage is within the recommended range and the device is operated within the specified temperature range.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the device's performance and stability.
  • Yes, the ISL28210FBZ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and follow the recommended operating conditions.
  • Use an oscilloscope to monitor the input and output voltages, and check for any signs of oscillation or instability. Verify that the device is properly powered and that the input voltage is within the recommended range.
