Description:The ISL28227 and ISL28227SEH are very high precision amplifiers featuring very low noise, low offset voltage, low input bias current, and low temperature drift making them the ideal choice for applications requiring both high DC accuracy and AC performance. The combination of precision, low noise and small footprint provides the user with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision active filters, medical and analytical instrum
A good PCB layout for the ISL28227FBZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability and prevent oscillations, it's essential to follow the recommended compensation network, use a low-ESR output capacitor, and ensure that the input and output capacitors are properly sized. Additionally, the device's output should be decoupled from the input using a ferrite bead or a resistor.
The maximum safe operating area (SOA) for the ISL28227FBZ is defined by the device's thermal and electrical limitations. The device should not be operated beyond its maximum junction temperature (TJ) of 150°C, and the output current should not exceed the maximum rated current. The device's SOA can be calculated using the datasheet's thermal and electrical specifications.
To troubleshoot issues with the ISL28227FBZ, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, decoupling, and compensation. Use an oscilloscope to observe the output voltage and current waveforms. Check for thermal issues by measuring the device's temperature and ensuring proper heat sinking. Consult the datasheet and application notes for guidance.
The ISL28227FBZ is a commercial-grade device, but it can be used in high-reliability or high-temperature applications with proper derating and design considerations. Consult the datasheet and application notes for guidance on derating, and consider using a more robust device or a different package option if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL28227FBZ Overview

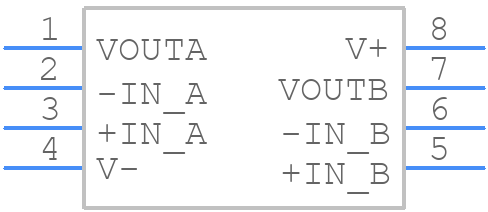

Use the download button to access the ISL28227FBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL28,
or try a keyword search, such as Operational Amplifiers
