Description:The ISL28107, ISL28207 and ISL28407 are single, dual and quad amplifiers featuring low noise, low input bias current, and low offset and temperature drift. This makes them the ideal choice for applications requiring both high DC accuracy and AC performance. The combination of precision, low noise, and small footprint provides the user with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision active filters, medical and analytical instru
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific requirements of your application, such as ripple current, voltage rating, and ESR. Renesas provides guidance on capacitor selection in their application note AN1965, which includes a capacitor selection table and design considerations.
While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device for reliable operation above 85°C. Consult the datasheet and application notes for specific derating guidelines.
Renesas provides EMC design guidelines in their application note AN1994, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with regulatory standards.
Renesas recommends a specific startup sequence to ensure proper device operation and prevent damage. The recommended sequence is: 1) Apply input voltage, 2) Apply enable signal, and 3) Apply output load. Consult the datasheet and application notes for specific startup sequence guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL28407FBZ Overview

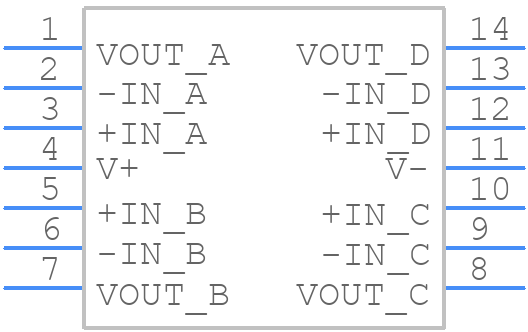

Use the download button to access the ISL28407FBZ schematic symbol, PCB footprint, and 3D model.
