ISL28408FBZ-T13 footprint, schematic symbol and 3D model by Renesas Electronics

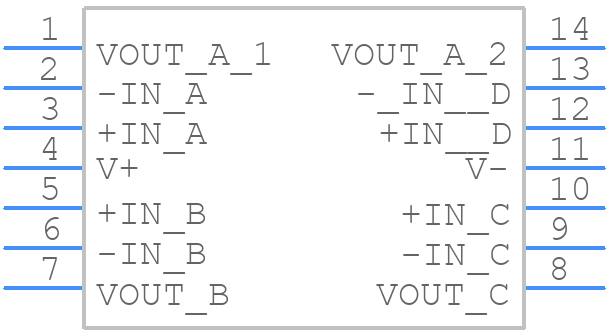

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL28408FBZ-T13
Part Number ISL28408FBZ-T13
Manufacturer Renesas Electronics
Pin Count 14
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - M14.15-_
Released Date Jan 11, 2020
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ISL28408FBZ-T13 Details

Manufacturer Part Number:
ISL28408FBZ-T13
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOICN
Package Description:
SOIC-8
Pin Count:
14
Manufacturer Package Code:
M14.15
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Date Of Intro:
2017-11-07
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Common-mode Reject Ratio-Min:
97 dB
Common-mode Reject Ratio-Nom:
112 dB
Frequency Compensation:
YES
Input Offset Voltage-Max:
330 µV
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Low-Bias:
NO
Low-Offset:
NO
Moisture Sensitivity Level:
2
Neg Supply Voltage Limit-Max:
-21 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
4
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUT LINE
Packing Method:
TR, 13 INCH
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Seated Height-Max:
1.75 mm
Slew Rate-Nom:
0.4 V/us
Supply Current-Max:
1.4 mA
Supply Voltage Limit-Max:
21 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
1200
Voltage Gain-Min:
89125.09381
Wideband:
NO
Width:
3.9 mm

ISL28408FBZ-T13 Frequently Asked Questions (FAQs)

Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Renesas recommends using X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage and a capacitance value of 10uF to 22uF for the input capacitor, and 10uF to 47uF for the output capacitor.
The ISL28408FBZ-T13 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal management design. Renesas recommends following the thermal design guidelines in the datasheet and application notes to ensure reliable operation.
The ISL28408FBZ-T13 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The recommended values for the resistor and capacitor can be found in the datasheet and application notes. Additionally, the OCP threshold can be adjusted by connecting a resistor from the OCP pin to the VIN pin.
The recommended input voltage range for the ISL28408FBZ-T13 is 2.7V to 5.5V, but the device can operate from 2.5V to 6V with reduced performance. It's essential to ensure that the input voltage is within the recommended range to maintain optimal performance and reliability.
