Description:The ISL28113, ISL28213 and ISL28413 are single, dual and quad channel general purpose micropower, rail-to-rail input and output operational amplifiers with supply voltage range of 1. 8V to 5. 5V. Key features are a low supply current of 130µA maximum per channel at room temperature, a low bias current and a wide input voltage range, which enables the ISL28x13 devices to be excellent general purpose operational amplifiers for a wide range of applications. The ISL28113 is available in the SC70-5 and SOT23-5 p
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific application and frequency range. Renesas recommends using low-ESR capacitors with a value of 10uF to 22uF for input and output decoupling. The capacitor selection guide in the datasheet can be used as a starting point, and further optimization may be required based on the specific application.
The maximum power dissipation of the ISL28413FBZ is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature, but this can be derated to 0.7W at 85°C ambient temperature. It's essential to ensure proper thermal management to prevent overheating.
The ISL28413FBZ is rated for operation up to 125°C junction temperature, but the maximum ambient temperature is 85°C. For high-temperature applications, it's essential to ensure proper thermal management, such as using a heat sink or thermal interface material, to prevent overheating and ensure reliable operation.
Oscillations or instability issues can be caused by various factors, including layout, component selection, and feedback network design. Renesas recommends following their application note AN1995 for layout and design guidelines, and using simulation tools to verify the design. Additionally, checking the power supply rejection ratio (PSRR) and common-mode rejection ratio (CMRR) can help identify potential issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL28413FBZ Overview

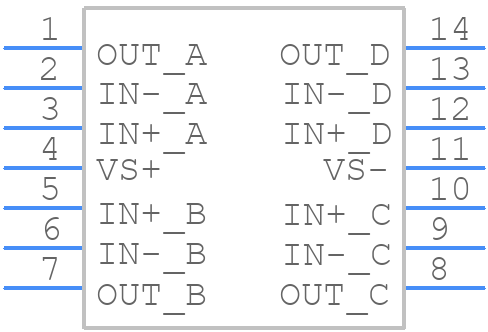

Use the download button to access the ISL28413FBZ schematic symbol, PCB footprint, and 3D model.
