ISL28430FVZ - Renesas Electronics

Description: The ISL28130, ISL28230 and ISL28430 are single, dual and quad micropower, low offset drift operational amplifiers that are optimized for single and dual supply operation from 1. 8V to 5. 5V and ±0. 9V to ±2. 75V. Their low supply current of 20µA and rail-to-rail input/output enable the ISL28130, ISL28230, and ISL28430 to be an excellent general-purpose op amp for a range of applications. The ISL28130, ISL28230 and ISL28430 are ideal for handheld devices that operate off 2AA or single Li-ion batteries. The I

Download ISL28430FVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

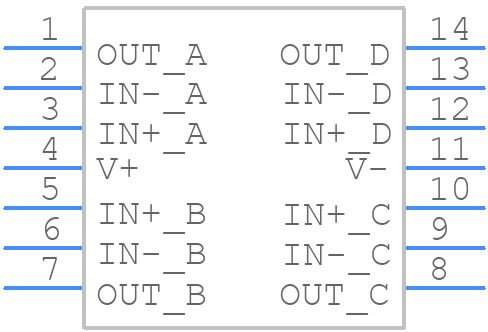

ISL28430FVZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL28430FVZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 14 Ld TSSOp-1
click to zoom

ISL28430FVZ Details

  • Manufacturer Part Number:

    ISL28430FVZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Manufacturer Package Code:

    MDP0044

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0007 µA

  • Common-mode Reject Ratio-Nom:

    125 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    55 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    0.2 V/us

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    400

  • Wideband:

    NO

  • Width:

    4.4 mm

ISL28430FVZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended layout and placement guide in the application note AN1995, which includes guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and minimize noise.
  • To optimize the ISL28430FVZ for low noise performance, follow the guidelines in the datasheet and application notes, such as using a low-noise voltage regulator, minimizing PCB noise, and using proper filtering and shielding techniques. Additionally, consider using a spread spectrum clock generator to reduce electromagnetic interference (EMI).
  • The ISL28430FVZ has an operating temperature range of -40°C to +125°C, but it's essential to note that the device's performance and accuracy may degrade at extreme temperatures. Consult the datasheet and application notes for specific temperature-related considerations.
  • Yes, the ISL28430FVZ is suitable for high-reliability and automotive applications due to its high accuracy, low noise, and robust design. However, it's crucial to follow the recommended design and layout guidelines, and to consult with Renesas' technical support team for specific application requirements and qualifications.
  • Renesas provides a troubleshooting guide in the application note AN1996, which covers common issues and their solutions. Additionally, consult the datasheet and technical support resources for guidance on debugging and troubleshooting techniques.
