ISL29038IROZ-T7 - Renesas Electronics

Description: The ISL29038 is a low power ambient light sensor (ALS) and proximity (PROX) sensor. It has a built-in IR-LED driver for proximity function. The ALS function measures the amount of light (in the visible spectrum) incident on the ISL29038. The ALS function has a programmable ambient IR-rejection, which allows fine tuning of light source variations and is ideal for light sensor applications under dark protective glass. The ALS provides a 12-bit measurement. A passive optical filter removes unwanted wavelengths

Download ISL29038IROZ-T7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

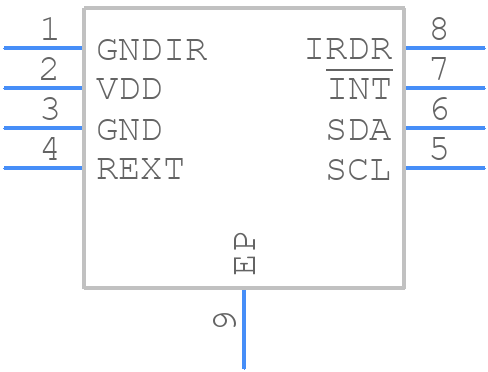

ISL29038IROZ-T7 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL29038IROZ-T7 - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L8.2.1x2.0+
click to zoom
3D Models
ISL29038IROZ-T7 - Renesas Electronics - 3D model - Small Outline No-lead - L8.2.1x2.0+
click to zoom

ISL29038IROZ-T7 Details

  • Manufacturer Part Number:

    ISL29038IROZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    HODFN

  • Package Description:

    ODFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.2.1X2.0

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-11-10

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2.1 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.75 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ISL29038IROZ-T7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL29038IROZ-T7 involves keeping the sensor away from other components that may interfere with its light sensing capabilities. A minimum clearance of 1 mm around the sensor is recommended. Additionally, the sensor should be placed on the top layer of the PCB to minimize interference from other components.
  • Calibration of the ISL29038IROZ-T7 involves adjusting the internal gain and offset registers to match the specific application's requirements. This can be done by taking readings in a known light source and adjusting the registers accordingly. Renesas provides a calibration guide and software tools to assist with this process.
  • The recommended power-on sequence for the ISL29038IROZ-T7 is to first apply VDD, then apply VLOGIC, and finally apply the clock signal. This ensures that the internal voltage regulators and analog circuits are properly initialized.
  • The ISL29038IROZ-T7 outputs 16-bit data that represents the ambient light level. To get accurate lux readings, the output data needs to be scaled and compensated for temperature effects. Renesas provides a formula and coefficients to convert the output data to lux values.
  • The ISL29038IROZ-T7 is specified to operate from -40°C to 85°C. However, the sensor's accuracy and sensitivity may degrade at extreme temperatures. It is recommended to operate the sensor within a temperature range of 0°C to 60°C for optimal performance.
