ISL29101IROZ-T7 - Renesas Electronics

Description: The ISL29101 is a low power ambient light-to-voltage optical sensor combining a photodiode array, a current amplifier and a micropower operational amplifier on a single monolithic IC. Similar to the human eye, the photodiode array has a peak response at 550nm and spans from 400nm to 600nm, rejecting UV light and IR light. The output voltage is proportional to the visible light intensity from 0.5 lux up to 10,000 lux. However, the input luminance range can go up to 30,000 lux with some compromise in linearit

Download ISL29101IROZ-T7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

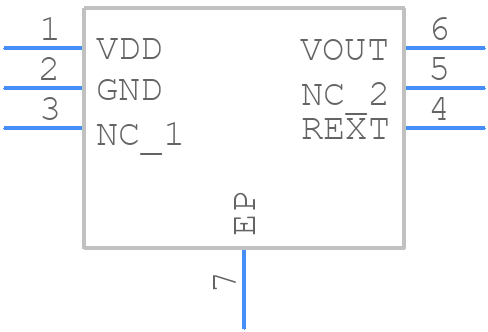

ISL29101IROZ-T7 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL29101IROZ-T7 - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - ODFN 6LD-
click to zoom
3D Models
ISL29101IROZ-T7 - Renesas Electronics - 3D model - Small Outline No-lead - ODFN 6LD-
click to zoom

ISL29101IROZ-T7 Details

  • Manufacturer Part Number:

    ISL29101IROZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    HODFN

  • Package Description:

    DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    L6.2X2.1

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Configuration:

    COMPLEX

  • Infrared Range:

    NO

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LINEAR OUTPUT PHOTO IC

  • Supply Current-Max:

    0.000035000000000000004 mA

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

ISL29101IROZ-T7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL29101IROZ-T7 involves keeping the sensor and the ADC pins as close as possible to the light source, using a solid ground plane, and minimizing the length of the traces to reduce noise and interference.
  • Calibration involves adjusting the gain and offset of the sensor to match the specific lighting conditions of the application. This can be done by taking readings at different light levels and adjusting the gain and offset accordingly.
  • The recommended operating temperature range for the ISL29101IROZ-T7 is -40°C to 85°C. Operating outside of this range may affect the accuracy and reliability of the sensor.
  • The ISL29101IROZ-T7 outputs a 16-bit digital signal that represents the lux reading. This data can be processed and converted to a human-readable format using a microcontroller or other processing device.
  • The typical current consumption of the ISL29101IROZ-T7 is around 1.4mA, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL29101IROZ-T7 Overview

Use the download button to access the ISL29101IROZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL29, or try a keyword search, such as Photo ICs
