ISL29102IROZ-T7 - Renesas Electronics

Description: The ISL29102 is a low cost, light-to-voltage silicon optical sensor combining a photodiode array, a nonlinear current amplifier, and a micro-power op amp on a single monolithic IC. Similar to human eyes, the photodiode array has peak sensitivity at 550nm and spans from 400nm to 600nm, rejecting UV light and IR light. The input luminance range is from 0.3 lux to 10,000 lux. The integrated nonlinear current amplifier boosts and converts the photodiode signal in a square root fashion, extending the light input

Download ISL29102IROZ-T7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

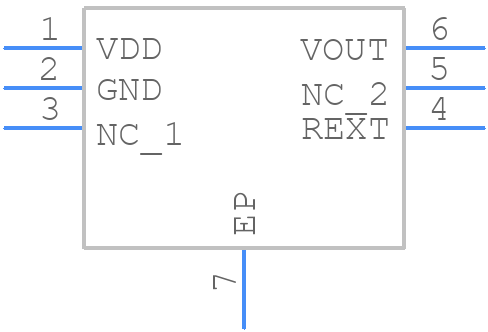

ISL29102IROZ-T7 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL29102IROZ-T7 - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L6.2x2.1
click to zoom
3D Models
ISL29102IROZ-T7 - Renesas Electronics - 3D model - Small Outline No-lead - L6.2x2.1
click to zoom

ISL29102IROZ-T7 Details

  • Manufacturer Part Number:

    ISL29102IROZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    HODFN

  • Package Description:

    ODFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    L6.2X2.1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

ISL29102IROZ-T7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL29102IROZ-T7 involves keeping the sensor and the ADC pins as close as possible to the light source, using a solid ground plane, and minimizing the length of the traces to reduce noise and interference.
  • Calibration involves adjusting the gain and offset of the sensor to match the specific lighting conditions of the application. This can be done by taking readings at different light levels and adjusting the gain and offset accordingly.
  • The recommended operating temperature range for the ISL29102IROZ-T7 is -40°C to 85°C. Operating outside of this range may affect the accuracy and reliability of the sensor.
  • The ISL29102IROZ-T7 outputs a 16-bit digital signal that represents the lux reading. This data can be processed and converted to a human-readable format using a microcontroller or other processing unit.
  • The typical current consumption of the ISL29102IROZ-T7 is around 1.4mA, but this can vary depending on the operating conditions and the specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL29102IROZ-T7 Overview

Use the download button to access the ISL29102IROZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL29, or try a keyword search, such as Other Converters
