ISL29501IRZ-T7A - Renesas Electronics

Description: The ISL29501 is a Time of Flight (ToF) based signal processing integrated circuit. The sensor enables low cost, low power, and long range optical distance sensing when combined with an external emitter and detector. The ISL29501 has a built-in current DAC circuit that drives an external LED or laser. The modulated light from the emitter is reflected off the target and is received by the photodiode. The photodiode then converts the returned signal into current, which is used by the ISL29501 for signal proces

Download ISL29501IRZ-T7A Model
Schematic

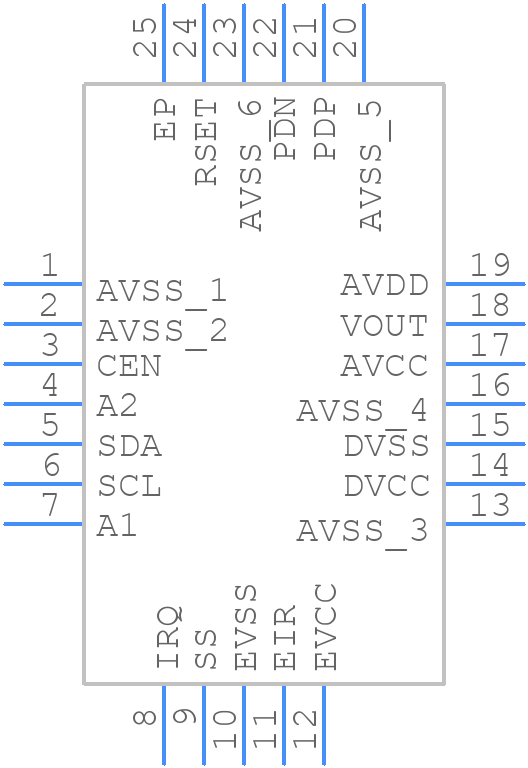

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL29501IRZ-T7A - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom
3D Models
ISL29501IRZ-T7A - Renesas Electronics  - 3D model - Quad Flat No-Lead - 24 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom

ISL29501IRZ-T7A Details

  • Manufacturer Part Number:

    ISL29501IRZ-T7A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Manufacturer Package Code:

    L24.4X5F

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Sensors/Transducers Type:

    LINEAR POSITION SENSOR,PHOTOELECTRIC,TOF,VCSEL

  • Terminal Finish:

    Pure Matte Tin (Sn) - annealed

ISL29501IRZ-T7A Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL29501IRZ-T7A involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known voltage to the input pins and adjusting the internal calibration registers accordingly. It's also important to ensure that the device is operated within the recommended temperature range and that the input voltage is within the specified range.
  • The recommended input voltage range for the ISL29501IRZ-T7A is 2.7V to 5.5V. If the input voltage exceeds this range, the device may not operate correctly or may be damaged. It's recommended to use voltage regulation and protection circuits to ensure the input voltage remains within the specified range.
  • The ISL29501IRZ-T7A can be interfaced with a microcontroller using the I2C or SPI interface. Key considerations for communication include ensuring the microcontroller is configured to communicate at the correct frequency and protocol, using the correct pin connections, and implementing error checking and handling mechanisms.
  • Key considerations for thermal management when using the ISL29501IRZ-T7A include ensuring good airflow around the device, using a heat sink if necessary, and avoiding high-power dissipation components nearby. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
