Description:The ISL33001 two-channel bus buffer provides the buffering necessary to extend the bus capacitance beyond the 400pF maximum specified by the I2C specification. In addition, the ISL33001 features rise time accelerator circuitry to reduce power consumption from passive bus pull-up resistors and improve data-rate performance. The device also includes hot-swap circuitry to prevent corruption of the data and clock lines when I2C devices are plugged into a live backplane. The ISL33001 operates at supply voltages
A good PCB layout for the ISL33001IBZ involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and initialization of the ISL33001IBZ, make sure to follow the recommended power-up sequence, which involves applying the power supply voltage (VCC) before the input voltage (VIN). Also, ensure that the EN pin is pulled high to enable the device.
The ISL33001IBZ has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power for extended periods. Also, follow the recommended PCB layout guidelines to minimize thermal resistance.
To troubleshoot issues with the ISL33001IBZ, start by checking the input voltage and power supply voltage levels. Verify that the device is properly powered up and initialized. Check for any signs of overheating, and ensure that the output voltage is within the specified range. If issues persist, consult the datasheet and application notes for further guidance.
The ISL33001IBZ is a commercial-grade device, and its use in high-reliability or safety-critical applications should be carefully evaluated. While it meets the requirements for many industrial and commercial applications, it may not meet the stringent requirements of high-reliability or safety-critical applications. Consult with Renesas Electronics Corporation or a qualified reliability engineer to determine the suitability of the device for such applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL33001IBZ Overview

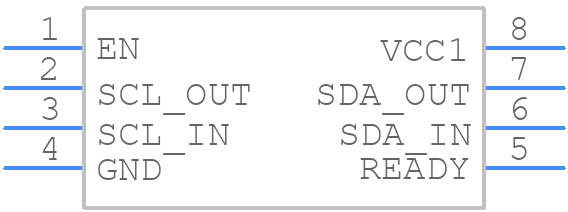

Use the download button to access the ISL33001IBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL33,
or try a keyword search, such as Other Signal Circuits
