ISL33001IRT2Z - Renesas Electronics

Description: The ISL33001 two-channel bus buffer provides the buffering necessary to extend the bus capacitance beyond the 400pF maximum specified by the I2C specification. In addition, the ISL33001 features rise time accelerator circuitry to reduce power consumption from passive bus pull-up resistors and improve data-rate performance. The device also includes hot-swap circuitry to prevent corruption of the data and clock lines when I2C devices are plugged into a live backplane. The ISL33001 operates at supply voltages

Download ISL33001IRT2Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

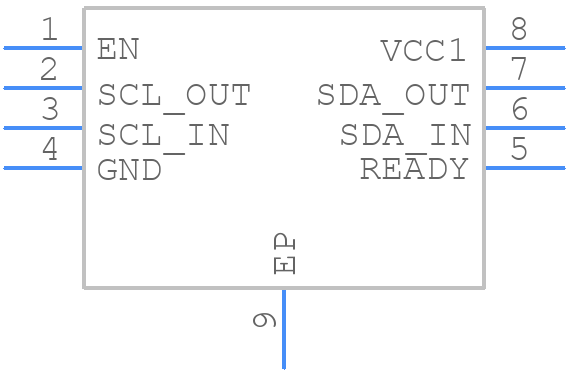

ISL33001IRT2Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL33001IRT2Z - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L8.3x3H
click to zoom
3D Models
ISL33001IRT2Z - Renesas Electronics - 3D model - Small Outline No-lead - L8.3x3H
click to zoom

ISL33001IRT2Z Details

  • Manufacturer Part Number:

    ISL33001IRT2Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TDFN

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.3X3H

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-10-13

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL33001IRT2Z Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL33001 evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ISL33001 has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via or a copper pour connected to a ground plane can be used to dissipate heat. Additionally, the device should be placed in a well-ventilated area to prevent overheating.
  • The recommended input capacitor value is 10uF to 22uF, with an X5R or X7R dielectric type. This ensures stable operation and minimizes noise and ripple on the input voltage.
  • The ISL33001 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve in the datasheet to ensure reliable operation.
  • Renesas provides a troubleshooting guide in the ISL33001 datasheet and application note, which includes steps to identify and resolve common issues. Additionally, engineers can use oscilloscopes and thermal imaging cameras to diagnose and debug issues.
