ISL43113IHZ-T footprint, schematic symbol and 3D model by Renesas Electronics

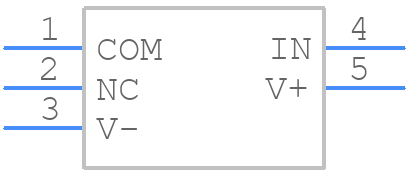

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL43113IHZ-T
Part Number ISL43113IHZ-T
Manufacturer Renesas Electronics
Pin Count 5
Part Category Integrated Circuit
Package Category SOT23 (5-Pin)
Footprint Name SOT23 (5-Pin) - 5 LEAD SMALL OUTLINE TRANSISTOR PLASTIC PACKAGE
Released Date Dec 11, 2019
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ISL43113IHZ-T Details

Manufacturer Part Number:
ISL43113IHZ-T
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOT23
Package Description:
SOT-23, 5 PIN
Pin Count:
5
Manufacturer Package Code:
P5.064
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
18 Weeks
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Analog IC - Other Type:
SPST
JESD-30 Code:
R-PDSO-G5
JESD-609 Code:
e3
Length:
2.9 mm
Moisture Sensitivity Level:
3
Neg Supply Voltage-Max (Vsup):
-6 V
Neg Supply Voltage-Min (Vsup):
-1.5 V
Neg Supply Voltage-Nom (Vsup):
-3.3 V
Normal Position:
NC
Number of Functions:
1
Number of Terminals:
5
Off-state Isolation-Nom:
90 dB
On-state Resistance-Max (Ron):
40 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LSSOP
Package Equivalence Code:
TSOP5/6,.11,37
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.45 mm
Signal Current-Max:
0.02 A
Supply Current-Max (Isup):
0.05 mA
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
1.5 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Switch-off Time-Max:
75 ns
Switch-on Time-Max:
110 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.95 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
1.6 mm

ISL43113IHZ-T Frequently Asked Questions (FAQs)

A good PCB layout for the ISL43113IHZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
To ensure stability, make sure to follow the recommended capacitor values and types, and keep the output capacitor's ESR (Equivalent Series Resistance) within the recommended range. Also, avoid using capacitors with high ESL (Equivalent Series Inductance) and ensure the PCB layout is well-designed to minimize parasitic inductance.
The ISL43113IHZ-T can handle input voltages up to 15V, but it's recommended to keep the input voltage below 12V for optimal performance and to prevent overheating.
The ISL43113IHZ-T is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve in the datasheet.
To troubleshoot issues with the ISL43113IHZ-T, start by checking the input voltage, output voltage, and output current. Verify that the capacitors are properly connected and meet the recommended specifications. Check the PCB layout for any signs of overheating or electrical noise. Use an oscilloscope to measure the output voltage and current waveforms, and consult the datasheet and application notes for guidance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ISL43113IHZ-T Overview

Use the download button to access the ISL43113IHZ-T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ISL43, or try a keyword search, such as Multiplexers or Switches
