ISL43141IBZ-T - Renesas Electronics

Description: The Intersil ISL43140-ISL43142 devices are CMOS, precision, quad analog switches designed to operate from a single +2V to +12V supply or from a ±2V to ±6V supply. Targeted applications include battery powered equipment that benefit from the devices' low power consumption (1µW), low leakage currents (1nA max), and fast switching speeds (tON = 30ns, tOFF = 18ns). A 12Ω maximum RON flatness ensures signal fidelity, while channel-to-channel mismatch is guaranteed to be less than 2. 5Ω. The 3mm x 3mm Quad No- Le

Download ISL43141IBZ-T Model

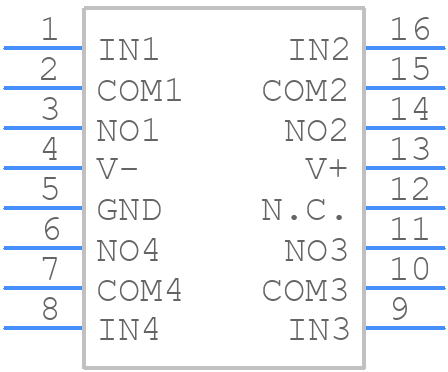

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL43141IBZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M16.15
click to zoom
3D Models
ISL43141IBZ-T - Renesas Electronics  - 3D model - Small Outline Packages - M16.15
click to zoom

ISL43141IBZ-T Details

  • Manufacturer Part Number:

    ISL43141IBZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.15

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -2 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    90 dB

  • On-state Resistance Match-Nom:

    2 Ω

  • On-state Resistance-Max (Ron):

    65 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    30 ns

  • Switch-on Time-Max:

    80 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL43141IBZ-T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ISL43141IBZ-T. Ensure that the input and output capacitors are placed close to the IC, and the power traces are wide and short. Also, keep the analog and digital grounds separate and connect them at a single point to minimize noise.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR and high capacitance. A good starting point is to use 10uF to 22uF ceramic capacitors for both input and output.
  • The ISL43141IBZ-T can operate reliably up to 85°C ambient temperature. However, it's recommended to derate the output current and voltage according to the thermal derating curve in the datasheet to ensure long-term reliability.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it exceeds the recommended operating range. You can also add a TVS (Transient Voltage Suppressor) diode to protect against voltage spikes and surges.
  • The recommended input voltage range is 2.7V to 5.5V. Operating the device outside this range may affect its performance, efficiency, and reliability.
